Processing capacity: 100-580 t/h
Feeding size: 350-700 mm
Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.
Applied materials: cement, limestone, granite, basalt, aggregate, calcite, quartz, concrete, dolomite, bluestone, iron ore, coal gangue, construction waste, ferrosilicon, etc.
Send e-mail info@hxjq.com

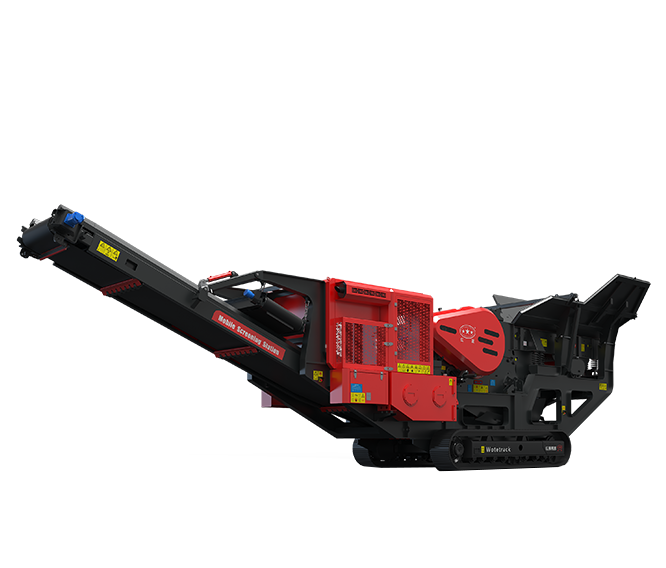

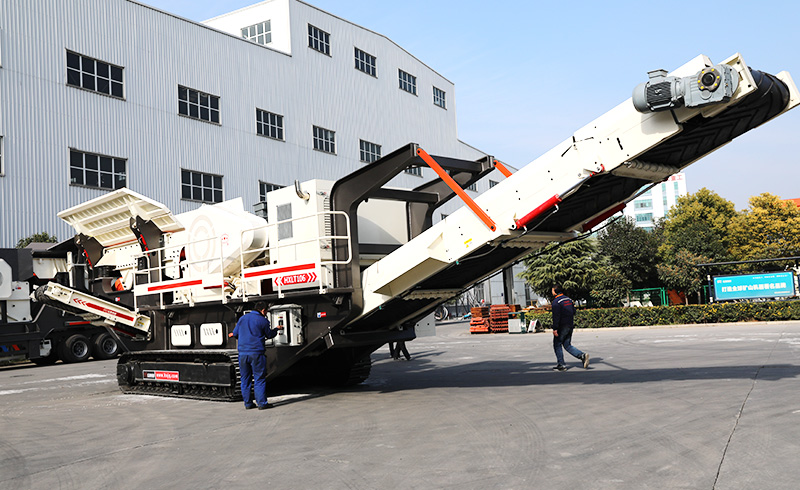

Crawler Mobile Crusher, as a kind of crushing and screening equipment, is also called Crawler-type Hydraulic Drive Crushing Station. Not only does it adopts the hydraulic system driving crawler to run smoothly, but also can adapt to various complex operating conditions.
1. The chassis adopts steel ship structure with high strength and it is highly adaptable to different working sites
2. The well-known brand motor achieves the good performance of the power system, with features of low noise and energy saving, etc
3. According to different requirements of customers, we can provide the different crushing and screening equipment and combined type optimum design, and we fully guarantee the quality
4. The generator set can be equipped, work normally under complex situations, such as the situation of no power or sudden power off, ensuring continuous operation and reducing unnecessary loss
The 100% ex-factory price is our commitment, and our company can guarantee the quality of these machines. Choosing Hongxing will not disappoint you. We have a professional mobile crusher sales staff, you can click on the online customer service on the right side, and you can ask questions in real time. Or you can leave a message in the message box at the bottom of the page and our staff will contact you shortly. You can also send an email to info@hxjq.com
Model WT96 and WT106
| Model | WT96 | WT106 | |
| Dimensions of Transmission Devices | Length | 14200mm | 15200mm |
| Width | 2900mm | 3000mm | |
| Height | 3470mm | 3600mm | |
| Weight | 38t | 50t | |
| Feeder | Hopper Volume | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | |
| FeederModel | GZDT3895 | GZDT1145 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Crusher | Model | CJ96 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | |
| Max.Feeding Size | 480mm | 560mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT120
| Model | WT120 | |
| Dimensions of Transmission Devices | Length | 15200mm |
| Width | 3200mm | |
| Height | 3700mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 6m³ |
| Loading Height | 4300mm | |
| FeederModel | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Crusher | Model | CJ120 |
| Inlet Dimensions | 1200×870mm | |
| Max.Feeding Size | 700mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | |
Model WT110 and WT110S
| Model | WT110 | WT110S | |
| Dimensions of Transmission Devices | Length | 14000mm | 17000mm |
| Width | 3000mm | 3200mm | |
| Height | 3600mm | 3600mm | |
| Weight | 40t | 45t | |
| Feeder | Hopper Volume | 3m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | |
| Crusher | Model | CI1110M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | |
| Max.Feeding Size | 400mm | 400mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×3600 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 2900mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4200mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1213 and WT1213S
| Model | WT1213 | WT1213S | |
| Dimensions of Transmission Devices | Length | 15500mm | 17000mm |
| Width | 3200mm | 3600mm | |
| Height | 3800mm | 3800mm | |
| Weight | 53t | 60t | |
| Feeder | Hopper Volume | 5m³ | 5m³ |
| Loading Height | 3900mm | 4100mm | |
| Primary Screen | Power | 6.12kw | 6.12kw |
| Sieve Dimensions | 1140×924mm | 1140×924mm | |
| Crusher | Model | CI1213M | CI1315M |
| Inlet Dimensions | 1320×900mm | 1320×900mm | |
| Max.Feeding Size | 500mm | 500mm | |
| The Feeder at the Bottom | Hopper Volume | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3500mm | 3500mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×4200 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 3000mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4500mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 304kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1315
| Model | WT1315 | |
| Dimensions of Transmission Devices | Length | 17000mm |
| Width | 3200mm | |
| Height | 3800mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 5m³ |
| Loading Height | 4000mm | |
| Primary Screen | Power | 6.12kw |
| Sieve Dimensions | 1240×930mm | |
| Crusher | Model | CI1315M |
| Inlet Dimensions | 1540×900mm | |
| Max.Feeding Size | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 1.5m³ |
| Power | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm |
| Dumping Height | 2400mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×11000mm |
| Dumping Height | 3800mm | |
| Secondary Screen | Power | ○ |
| Sieve Dimensions | ○ | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | |
Model ST673 and ST993
| Model | ST673 | ST993 | |
| Dimensions of Transmission Devices | Length | 11000mm | 12500mm |
| Width | 3800mm | 4000mm | |
| Height | 3800mm | 3900mm | |
| Weight | 28t | 33t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX2160 |
| Sieving Layers | 3 | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7400mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 500×5300mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 500×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST1303
| Model | ST1303 | |
| Dimensions of Transmission Devices | Length | 12500mm |
| Width | 4000mm | |
| Height | 3900mm | |
| Weight | 38t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×13000mm |
| Loading Height | 2700mm | |
| Vibrating Screen | Model | 3HX2160 |
| Sieving Layers | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7500mm |
| Discharging Height | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 650×5400mm |
| Discharging Height | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 650×2000mm |
| Discharging Height | 2130mm | |
| Diesel Engine | Power | 96kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | |
Model WT160SC and WT250SC
| Model | WT160SC | WT250SC | |
| Dimensions of Transmission Devices | Length | 16800mm | 19500mm |
| Width | 3500mm | 3600mm | |
| Height | 3700mm | 3800mm | |
| Weight | 50t | 60t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions(Width×Length) | 1000×6300mm | 1000×6300mm | |
| Crusher | Model | SC160 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | |
| Max.Feeding Size | 360mm | 450mm | |
| Min. Discharging Size | 8-25mm | 8-35mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | |
| Secondary Screen | Dumping Height | 4200mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×10000mm | 650×10000mm |
| Dumping Height | 4200mm | 4200mm | |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 207.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT300HPM and WT400HPM
| Model | WT300HPM | WT400HPM | |
| Dimensions of Transmission Devices | Length | 19000mm | 19500mm |
| Width | 3900mm | 3900mm | |
| Height | 3800mm | 3800mm | |
| Weight | 55t | 65t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2800m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions(Width×Length) | 1000×6300mm | 1200×6500mm | |
| Crusher | Model | HP300 | HP400 |
| Inlet Dimensions | 60-200mm | 68-280mm | |
| Max.Feeding Size | 200mm | 280mm | |
| Min. Discharging Size | 8-45mm | 8-51mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×11000mm |
| Dumping Height | 3490mm | 3690mm | |
| Secondary Screen | Dumping Height | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3300mm | |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×11000mm | 650×11000mm |
| Dumping Height | 4400mm | 4400mm | |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Chat Online
Leave Message
