Processing capacity: 85-650 t/h
Feeding size: 500-800 mm
Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.
Applied materials: cement, limestone, granite, basalt, aggregate, calcite, quartz, concrete, dolomite, bluestone, iron ore, coal gangue, construction waste, ferrosilicon, etc.
Send e-mail info@hxjq.com

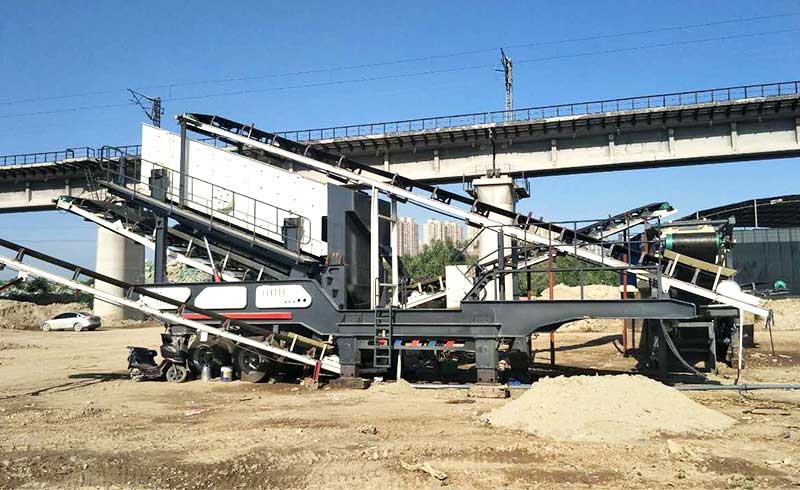

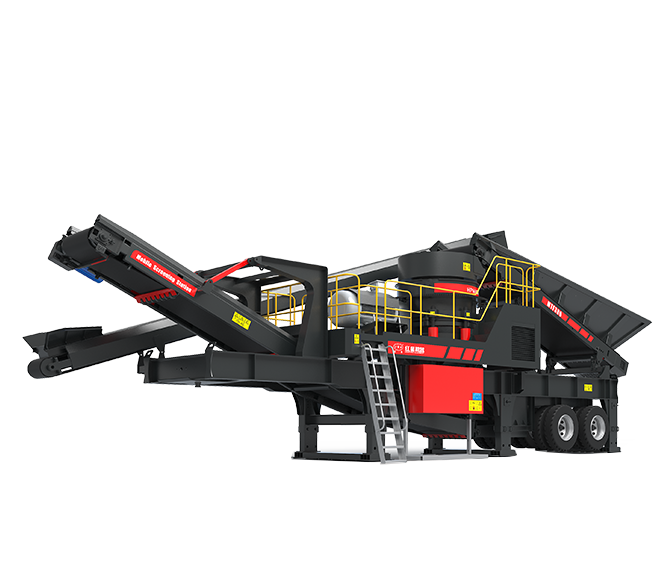

Mobile crusher is a kind of mining machinery equipment, which integrates feeding, conveying, crushing, and making and sieving. It is mainly used for metallurgy, chemical industry, building materials, water, and electricity as a mobile stone station business. With multiple combinations, users can use different solutions to meet different field conditions.
Strong Mobility : Superior performance of complete set, saving time to go in & out and convert the working site
Minimize the Cost : Eliminate the intermediate links in addition to the re-breaking at the site, reducing the transportation cost of materials
High Adaptability : It can be operated independently by a single unit, or it can be flexibly composed of units for combination process
Customized Design : Customized design can be made according to different crushing industries, “first crushed and then sieved” or “first sieved and then crushed”, crushing and screening can also be carried out separately
There are two main types of mobile crushers: the crawler mobile crusher and the wheeled mobile crusher. These selections include jaw crusher, cone crusher, etc.

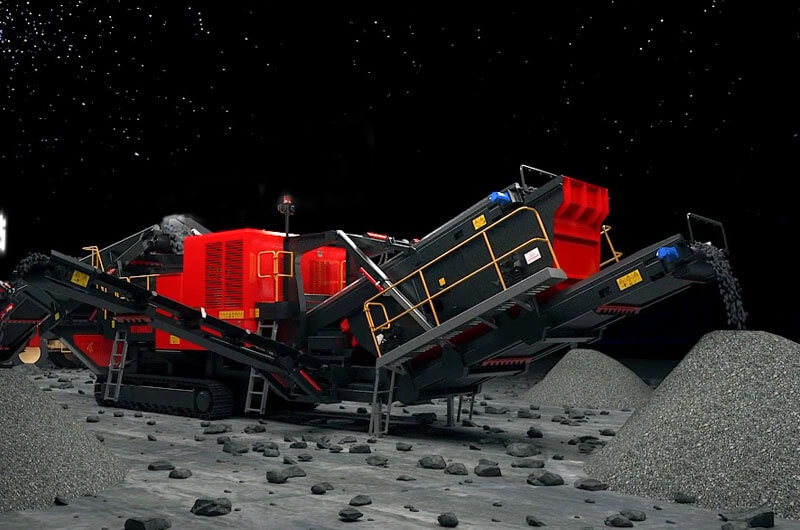

The crawler mobile crusher: Strong mobility, reduce material transportation costs. Can be applied to a variety of complex crushing field conditions.
The wheeled mobile crusher: Customized design can be made according to different crushing industries, “first crushed and then sieved” or “first sieved and then crushed”, crushing and screening can also be carried out separately.
Mobile jaw crusher
Mobile impact crusher
Bin Volume:5-8m³
Bin Volume:5-10m³
Speed:0-20m/min
Speed:0-20m/min
Weight:38-52.5t
Weight:43-65t
Capacity:300-450tph
Capacity:130-480tph
Mobile cone crusher
Mobile vibrating screen
Bin Volume:4-6m³
Bin Volume:4-6m³
Speed:0-20m/min
Speed:0-20m/min
Weight:40-55t
Weight:32-43t
Capacity:100-400tph
Capacity:400-580tph
Model HX938HD86 and HX1149HD98
| Model | HX938HD86 | HX1149HD98 |
| Transportation lenght(mm) | 12600 | 13500 |
| Transportation Width(mm) | 2600 | 2700 |
| Transportation Height(mm) | 3870 | 4200 |
| Maximum Lenght(mm) | 12500 | 14000 |
| Maximum Width(mm) | 4100 | 4500 |
| Maximum Height(mm) | 4100 | 4900 |
| Weight(t) | 39 | 57 |
| tIRE Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD86 | HD98 |
| Maximum Feeding Size(mm) | 500 | 550 |
| Discharge opening range | 50-150 | 75-175 |
| Capacity(t/h) | 85-275 | 110-350 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m |
| Gensrt(optional) | 200KW | 250KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 |
Model HX1349HD110 and HX1349HD125
| Model | HX1349HD110 | HX1349HD125 |
| Transportation lenght(mm) | 14500 | 15200 |
| Transportation Width(mm) | 2800 | 2900 |
| Transportation Height(mm) | 4450 | 4500 |
| Maximum Lenght(mm) | 16100 | 16700 |
| Maximum Width(mm) | 5100 | 5100 |
| Maximum Height(mm) | 5000 | 5300 |
| Weight(t) | 55 | 65 |
| Tire Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD110 | HD125 |
| Maximum Feeding Size(mm) | 660 | 800 |
| Discharge opening range | 100-200 | 125-225 |
| Capacity(t/h) | 215-510 | 280-650 |
| Vibrating Feeder | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-10 | RCYD(C)-12 |
Model HX938F1210 and HX938F1214 and HX1149F1315
| Model | HX938F1210 | HX938F1214 | HX1149F1315 |
| Transportation lenght(mm) | 12000 | 12000 | 13900 |
| Transportation Width(mm) | 2550 | 2550 | 2900 |
| Transportation Height(mm) | 3900 | 3900 | 4450 |
| Maximum Lenght(mm) | 12500 | 12500 | 13900 |
| Maximum Width(mm) | 3250 | 3260 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW |
| iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 |
Model HX938F1110 and HX1349F1315
| Model | HX938F1110 | HX1349F1315 |
| Transportation lenght(mm) | 15450 | 15450 |
| Transportation Width(mm) | 2950 | 2950 |
| Transportation Height(mm) | 4500 | 4500 |
| Maximum Lenght(mm) | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3250 |
| Maximum Height(mm) | 5200 | 5200 |
| Weight(t) | 62 | 62 |
| Impact crusher | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 400 | 700 |
| Capacity(t/h) | 112 | 280 |
| Vibrating Feeder | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-12 |
| Model | HX3S185GYS300 | HX3S216GYS400 | HX3S216HP300 |
| Transportation length(mm) | 14500 | 15000 | 16000 |
| Transportation Width(mm) | 3000 | 3000 | 4550 |
| Transportation Height(mm) | 4400 | 4500 | 4600 |
| Maximum Length(mm) | 17000 | 16000 | 17000 |
| Maximum Width(mm) | 3400 | 3900 | 6900 |
| Maximum Height(mm) | 5800 | 6500 | 4700 |
| Weight(t) | 34.5 | 49.5 | 41 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial |
| Cone crusher | GYS300 | GYS400 | HP300 |
| Discharging belt Conveyor | B650×15M×2 | B800×15M×2 | B800×15M×2 |
| Return belt conveyor | B650×14M | B800×14M | B800×16M |
| CONveyor Belt For Final Products | B500×15M | B800×6M | B650×15M×2 |
| Under Virbrating Screen | B800×7M | B800×8M | B800×9M |
| Vibrating Screen | 3YK1854 | 3YK2160 | 3YK2160 |
Model WT96 and WT106
| Model | WT96 | WT106 | |
| Dimensions of Transmission Devices | Length | 14200mm | 15200mm |
| Width | 2900mm | 3000mm | |
| Height | 3470mm | 3600mm | |
| Weight | 38t | 50t | |
| Feeder | Hopper Volume | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | |
| FeederModel | GZDT3895 | GZDT1145 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Crusher | Model | CJ96 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | |
| Max.Feeding Size | 480mm | 560mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT120
| Model | WT120 | |
| Dimensions of Transmission Devices | Length | 15200mm |
| Width | 3200mm | |
| Height | 3700mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 6m³ |
| Loading Height | 4300mm | |
| FeederModel | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Crusher | Model | CJ120 |
| Inlet Dimensions | 1200×870mm | |
| Max.Feeding Size | 700mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×12000mm |
| Dumping Height | 3400mm | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | |
Model WT110 and WT110S
| Model | WT110 | WT110S | |
| Dimensions of Transmission Devices | Length | 14000mm | 17000mm |
| Width | 3000mm | 3200mm | |
| Height | 3600mm | 3600mm | |
| Weight | 40t | 45t | |
| Feeder | Hopper Volume | 3m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | |
| Crusher | Model | CI1110M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | |
| Max.Feeding Size | 400mm | 400mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×3600 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 2900mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4200mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1213 and WT1213S
| Model | WT1213 | WT1213S | |
| Dimensions of Transmission Devices | Length | 15500mm | 17000mm |
| Width | 3200mm | 3600mm | |
| Height | 3800mm | 3800mm | |
| Weight | 53t | 60t | |
| Feeder | Hopper Volume | 5m³ | 5m³ |
| Loading Height | 3900mm | 4100mm | |
| Primary Screen | Power | 6.12kw | 6.12kw |
| Sieve Dimensions | 1140×924mm | 1140×924mm | |
| Crusher | Model | CI1213M | CI1315M |
| Inlet Dimensions | 1320×900mm | 1320×900mm | |
| Max.Feeding Size | 500mm | 500mm | |
| The Feeder at the Bottom | Hopper Volume | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3500mm | 3500mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×4200 | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 3000mm | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | ○ |
| Dumping Height | ○ | 4500mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 304kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1315
| Model | WT1315 | |
| Dimensions of Transmission Devices | Length | 17000mm |
| Width | 3200mm | |
| Height | 3800mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 5m³ |
| Loading Height | 4000mm | |
| Primary Screen | Power | 6.12kw |
| Sieve Dimensions | 1240×930mm | |
| Crusher | Model | CI1315M |
| Inlet Dimensions | 1540×900mm | |
| Max.Feeding Size | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 1.5m³ |
| Power | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm |
| Dumping Height | 2400mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1200×11000mm |
| Dumping Height | 3800mm | |
| Secondary Screen | Power | ○ |
| Sieve Dimensions | ○ | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ |
| Dumping Height | ○ | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | |
Model WT160SC and WT250SC
| Model | WT160SC | WT250SC | |
| Dimensions of Transmission Devices | Length | 16800mm | 19500mm |
| Width | 3500mm | 3600mm | |
| Height | 3700mm | 3800mm | |
| Weight | 50t | 60t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions(Width×Length) | 1000×6300mm | 1000×6300mm | |
| Crusher | Model | SC160 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | |
| Max.Feeding Size | 360mm | 450mm | |
| Min. Discharging Size | 8-25mm | 8-35mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | |
| Secondary Screen | Dumping Height | 4200mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×10000mm | 650×10000mm |
| Dumping Height | 4200mm | 4200mm | |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 207.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT300HPM and WT400HPM
| Model | WT300HPM | WT400HPM | |
| Dimensions of Transmission Devices | Length | 19000mm | 19500mm |
| Width | 3900mm | 3900mm | |
| Height | 3800mm | 3800mm | |
| Weight | 55t | 65t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ |
| Loading Height | 2600m | 2800m | |
| Loading Width | 1900mm | 1900mm | |
| Dimensions(Width×Length) | 1000×6300mm | 1200×6500mm | |
| Crusher | Model | HP300 | HP400 |
| Inlet Dimensions | 60-200mm | 68-280mm | |
| Max.Feeding Size | 200mm | 280mm | |
| Min. Discharging Size | 8-45mm | 8-51mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×11000mm |
| Dumping Height | 3490mm | 3690mm | |
| Secondary Screen | Dumping Height | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3300mm | |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×11000mm | 650×11000mm |
| Dumping Height | 4400mm | 4400mm | |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Chat Online
Leave Message
