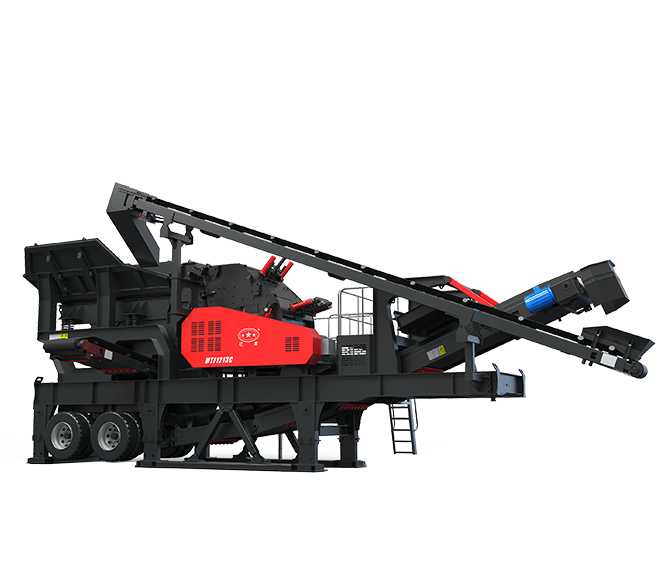

Wheeled Mobile Impact Crusher Station

Wheeled Mobile Impact Crusher Station

Chat OnlineChat Online

iconProcessing capacity: 70-280t/h

iconMax. Feeding size: 350-700mm

iconApplication fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.

Applied materials: granite, basalt, cobble, bauxite, cement clinker, quartz, silicon carbide, mine, iron ore, etc.

mail Send e-mail info@hxjq.com

Product Introduction

Wheeled Mobile impact crusher Station is generally equipped with impact crusher. It adopts new manufacturing technology and unique structural design. The finished product is cubic, without tension and crack, and the granular shape is quite good. Mobile impact crusher can crush all kinds, of course, medium and fine materials (granite, limestone, concrete, etc.)

mobile impact crusher applications and applicable materials

Features

  1. Unit Integration : Superior performance of complete set, reasonable and compact configuration, low requirements for operating sites.

  2. Strong Mobility : Compact structure for the whole set, short turning radius, easy to go in & out and convert the working site.

  3. High Efficiency and Energy Saving : Large feeding port, high crushing chamber, high hardness for material, large block size, little product stone powder.

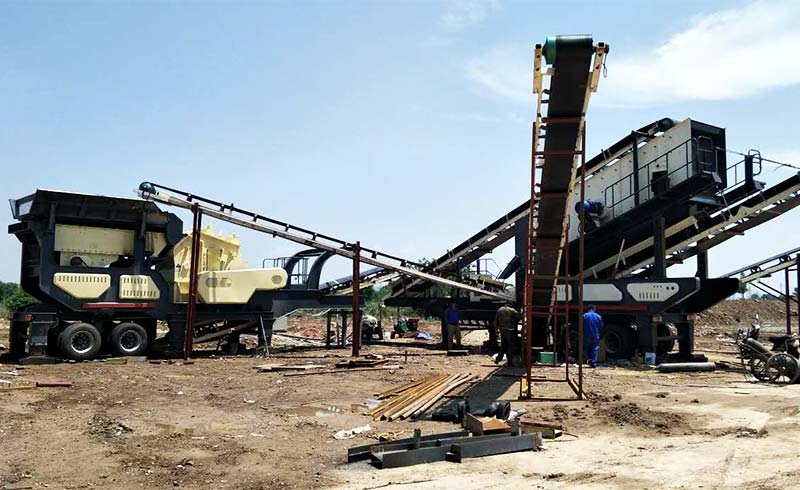

mobile impact crusher production site

Learn More About Us

The Wheeled Mobile impact crusher Station is a series of rock and construction waste crushing equipment, which greatly expands the concept of rough and fine crushing operations. Its design philosophy is to stand on the customer's side and to provide the first solution to eliminate the obstacles of crushing the site, the environment, the complicated basic configuration, and the complicated logistics to the customer's crushing operation.

As a professional provider of construction and mining crushing solutions, we can provide our customers with quality building and mine crushing equipment and provide detailed technical support. Different process requirements are met through an optimized combination of various types of equipment.

Parameter Table Of Wheeled Mobile Impact Crusher Station

Mobile Impact Crusher

Model HX938F1210 and HX938F1214 and HX1149F1315

Model HX938F1210 HX938F1214 HX1149F1315
Transportation lenght(mm) 12000 12000 13900
Transportation Width(mm) 2550 2550 2900
Transportation Height(mm) 3900 3900 4450
Maximum Lenght(mm) 12500 12500 13900
Maximum Width(mm) 3250 3260 3250
Maximum Height(mm) 5100 5200 5200
Weight(t) 39 44 54
Impact crusher PE-1210 PE-1214 PF-1315
Maximum Feeding Size(mm) 350 350 500
Capacity(t/h) 70-130 100-180 130-250
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m
Gensrt(optional) 320KW 320KW 400KW
iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10

Model HX938F1110 and HX1349F1315

Model HX938F1110 HX1349F1315
Transportation lenght(mm) 15450 15450
Transportation Width(mm) 2950 2950
Transportation Height(mm) 4500 4500
Maximum Lenght(mm) 15450 15450
Maximum Width(mm) 3250 3250
Maximum Height(mm) 5200 5200
Weight(t) 62 62
Impact crusher HD1110 HD1315
Maximum Feeding Size(mm) 400 700
Capacity(t/h) 112 280
Vibrating Feeder ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×11M B1200×11M
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-12
