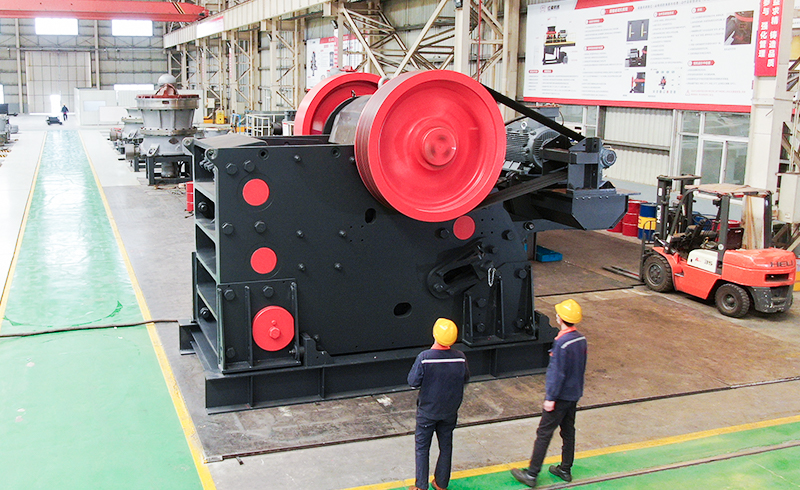

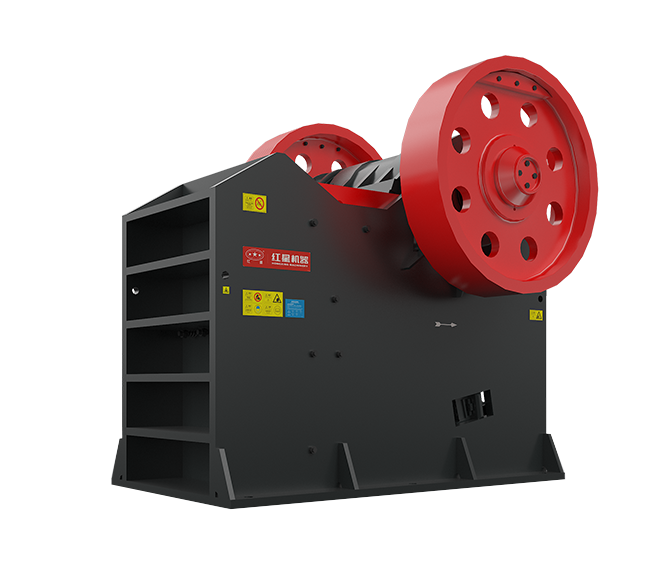

Stone crusher-Stone breakers-Quarry Stone crusher

Product Introduction

Stone crusher can be used to process over 120 kinds of stones in mining, quarry, etc. The crushed stones have wide market demand in many industries, such as construction, building, road, highway, water conservancy and other fields.

Crusher Types---We have small, medium and large stone crusher for sale, stationary & mobile types for choice, meeting your different needs.

Working Principle

The working principle of each type of stone crusher is different. Take the traditional jaw crusher as an example. When the jaw crusher is working, the motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw increases, thereby pushing the movable jaw plate to approach the fixed jaw plate, and at the same time, the material is crushed or split to achieve the purpose of crushing; when the movable jaw descends, the angle between the toggle plate and the movable jaw decreases, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the movable jaw of the crusher moves periodically to crush and discharge materials, realizing mass production.

Working Principle

Stone Crusher Features:

Unique Flywheel Design : Reduce vibration effectively, Machine work is stable.
Large Crushing Ratio : low suspension motion mechanism leads to greater crushing ratio.
Easy To Maintain : Application of high wear-resisting toothed plate, long maintenance period, and cost-saving.
Low Failure Rate : Reliable performance, optimized design, the low failure rate.

Product
presentation

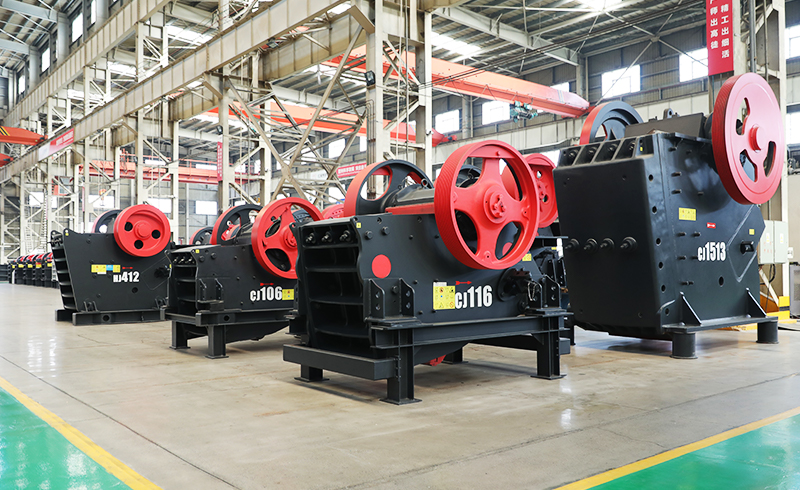

Different Types of Crushing Machines

Hongxing Mining Machinery Co., Ltd. Is a large joint-stock enterprise which mainly produces heavy mining machinery and integrates scientific research, production and sales. The crushing series of equipment manufactured by the company has been exported to more than 100 countries.

Hongxing provides workmanship and after-sales service for the following products of the best quality.

1, Jaw crusher 2, Mobile crusher 3, Cone crusher 4, Impact crusher 5, Hammer crusher 6, Sand making machine 7, Tertiary crusher 8, Roll crusher 9, Combination crusher 10, Single stage crusher, and so on.

Our company can provide project design, process design, standard and non-standard product design, and production.

Technical data

PE/PEX Jaw Crusher
Cone Crusher
Stone Crusher
Hammer Crusher

Model	Feed opening size(mm）	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Power (kw)	Dimensions（L×W×H） (mm)
PE 150×250	150×250	125	10-40	1-3	268	4P 5.5	760×700×860
PE 200×300	200×300	180	15-50	2-6	260	4P 7.5	915×780×990
PE 200×350	200×350	180	18-60	3-10	276	4P 11	1000×914×1112
PE 250×400	250×400	210	20-70	5-21	300	6P 15	1100×1032×1285
PE 400×600	400×600	340	40-100	16-64	270	6P 30	1623×1736×1615
PE 500×750	500×750	425	50-100	40-110	268	6P 55	1920×1850×1920
PE 600×750	600×750	500	150-200	80-240	268	6P 55	2020×1850×1920
PE 600×900	600×900	500	65-160	50-160	254	6P 55	2530×1900×2340
PE 750×1060	750×1060	630	80-180	110-320	245	8P 110	2680×2380×2785
PE 900×1200	900×1200	750	100-200	220-380	208	8P 110	3470×2876×3330
PE1200×1500	1200×1500	1020	150-350	400-1000	180	8P 160-245	4850×3220×3680
PE1500×1800	1500×1800	1200	220-350	500-1200	180	8P 280-380	5160×3660×4248
PEX 150×750	150×750	120	18-48	8-25	320	4P 15	1170×1575×1030
PEX 250×750	250×750	210	25-60	13-35	320	6P 22	1550×1730×1470
PEX 250×1000	250×1000	210	25-60	16-52	330	6P 30	1580×2006×1390
PEX 250×1200	250×1200	210	25-60	20-61	330	6P 37	1780×2214×1430
PEX 300×1300	300×1300	250	20-90	16-105	300	6P 55	2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specification	Model	Diameter of large end of crushing cone (mm)	Max.feeding size(mm)	Width of discharge opening (mm)	Processing capacity (t/h)	Motor power (kw)	Total weight （t）	Dimensions (L×W×H) （mm）
Φ600	PYB600	600	65	12-25	40	8P 30	5	2234×1370×1675
Φ600	PYD600	600	35	3-13	12-23	8P 30	5.5	2234×1370×1675
Φ900	PYB900	900	115	15-50	50-90	8P 55	11.2	2692×1640×2350
	PYZ900		60	5-20	20-65		11.2	2692×1640×2350
	PYD900		50	3-13	15-50		11.3	2692×1640×2350
Φ1200	PYB1200	1200	145	20-50	110-168	8P 110	24.7	2790×1878×2844
	PYZ1200		100	8-25	42-135		25	2790×1878×2844
	PYD1200		50	3-15	18-105		25.3	2790×1878×2844
Φ1750	PYB1750	1750	215	25-50	180-360	8P 160	50.3	3910×2894×3809
	PYZ1750		185	10-30	80-210		50.3	3910×2894×3809
	PYD1750		85	5-13	60-180		50.2	3910×2894×3809
Φ2200	PYB2200	2200	300	30-60	420-700	8P 280-260	80	4622×3302×4470
	PYZ2200		230	10-30	130-410		80	4622×3302×4470
	PYD2200		100	5-15	80-200		81.4	4622×3302×4470

Model	Specification （mm）	Feed opening （mm）	The Maximum Feeding Size （mm）	Capacity （t/h）	Power （kw）	Overall dimension （L×W×H）（mm）	Total weight （t）
PF-1007	Φ1000×700	400×730	300	30-70	4P 37-45	2330×1660×2300	12
PF-1010	Φ1000×1050	400×1080	350	50-90	4P 45-55	2370×1700×2390	15
PF-1210	Φ1250×1050	400×1080	350	70-130	6P 110	2680×2160×2800	17.7
PF-1214	Φ1250×1400	400×1430	350	80-180	6P 132	2650×2460×2800	22.4
PF-1315	Φ1320×1500	860×1520	500	100-280	6P 200	3180×2720×3120	27
PF-1320	Φ1300×2000	993×2000	500	140-380	6P 250	3220×3100×3120	34
PF-1520	Φ1500×2000	830×2040	700	200-550	4P 315-400	3959×3564×3330	50.6
PF-1820	Φ1800×2000	1260×2040	800	400-800	4P 630-710	4400×3866×4009	83.21

Specification	Capacity(m³/h)	Motor Power (kw)
PCΦ400×300	5-10	4P 11KW
PCΦ600×400	10-22	4P 22KW
PCΦ800×600	18-40	6P 55KW
PCΦ1000×800	25-50	8P 75KW
PCΦ1000×1000	30-55	8P 90KW

PE/PEX Jaw Crusher
Cone Crusher
Stone Crusher
Hammer Crusher

Model	Max.Feeding size (mm)	Capacity (t/h)
PE 150×250	125	1-3
PE 200×300	180	2-6
PE 200×350	180	3-10
PE 250×400	210	5-21
PE 400×600	340	16-64
PE 500×750	425	40-110
PE 600×750	500	80-240
PE 600×900	500	50-160
PE 750×1060	630	110-320
PE 900×1200	750	220-380
PE 1200×1500	1020	400-1000
PE 1500×1800	1200	500-1200
PEX 150×750	120	8-25
PEX 250×750	210	13-35
PEX 250×1000	210	16-52
PEX 250×1200	210	20-61
PEX 300×1300	250	16-105

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specification	Max.feeding size(mm)	Processing capacity (t/h)
Φ600	65	40
Φ600	35	12-23
Φ900	115	50-90
	60	20-65
	50	15-50
Φ1200	145	110-168
	100	42-135
	50	18-105
Φ1750	215	180-360
	185	80-210
	85	60-180
Φ2200	300	420-700
	230	130-410
	100	80-200

Model	Feed opening （mm）	The Maximum Feeding Size （mm）	Capacity （t/h）
Φ1000×700	400×730	300	30-70
Φ1000×1050	400×1080	350	50-90
Φ1250×1050	400×1080	350	70-130
Φ1250×1400	400×1430	350	80-180
Φ1320×1500	860×1520	500	100-280
Φ1300×2000	993×20000	500	140-380
Φ1500×2000	830×2040	700	200-550
Φ1800×2000	1260×2040	800	400-800

Specification	Capacity(m³/h)	Motor Power (kw)
PCΦ400×300	5-10	4P 11KW
PCΦ600×400	10-22	4P 22KW
PCΦ800×600	18-40	6P 55KW
PCΦ1000×800	25-50	8P 75KW
PCΦ1000×1000	30-55	8P 90KW

For customization, please contact us.
