Application fields: mine, metallurgy, building material, highway, railway, water conservancy and chemical industry
Made in China
Two weeks delivery, custom cycle, please consult

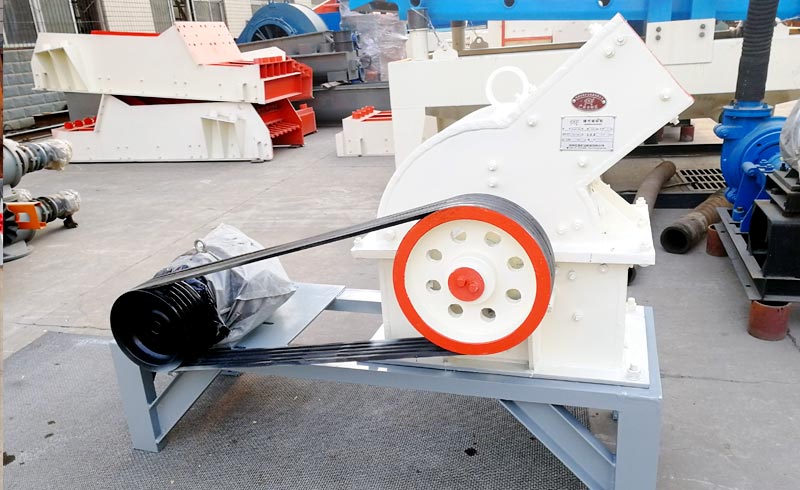

The Hammer Crusher can crush the stone in once time without secondary crushing, which can reduce the cost by about 40%, and have low energy consumption and low investment. It is widely used in many industries such as mining, smelting, building materials, road, railway, water conservancy and chemical industry. What’s more, it is especially suitable for crushing limestone and stone with a compressive strength of less than 200 Mpa.
In the hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them; the crushed products meeting the required size can be discharged by the outlet and become the final products; the large size products are brought back to the crushing area by the hammers for being re-crushed until they reach the required size
limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, etc
Finished product specification: 5-40 (unit: mm) Processing materials:
1. High crushing ratio.
2. The granularity can be adjusted according to the requirement of customers.
3. Reduce the cost by 40%, energy consumption, and investment.
4. Simple structure and lightweight, easy operation and maintenance.
5. Single molding without secondary crushing.
The hammer crusher is a common selected equipment for small-scale sand and gravel crushing. The investment cost of the equipment is low and the revenue recovery is fast. The price of hammer crusher is affected by many factors. Different manufacturers of different types of hammer crusher will give different quotes. It is recommended that you come to our company for inspection. Our company is currently a professional manufacturer of hammer crushers in China. Factory price, you can chat online with our service staff at any time to get more detailed information.
| Model |
Rotor×Length（mm） |
Feed Opening Length×Width（mm） |
Max.Feeding Size（mm） |
Capacity（t/h） |
Power（kw） |
Dimensions（L×W×H（mm） |
| PCX-0706 |
700×570 |
618×510 |
≤200 |
50-70 |
75 |
1950×1340×1480 |
| PCX-0808 |
800×750 |
780×610 |
≤200 |
80-100 |
132 |
2280×1790×1570 |
| PCX-0910 |
900×1000 |
1070×750 |
≤200 |
150-200 |
110×2 |
2600×2200×1940 |
| PCX-1012 |
1000×1180 |
1315×900 |
≤200 |
250-300 |
132×2 |
2760×2430×2290 |
| PCX-1213 |
1260×1280 |
1430×1010 |
≤250 |
300-350 |
160×2 |
3067×2622×2580 |
| PCX-1216 |
1260×1490 |
1630×1010 |
≤250 |
400-500 |
200×2 |
3067×2832×2580 |
| PCX-1220 |
1260×1950 |
2090×1010 |
≤250 |
500-700 |
220×2 |
3067×3380×2580 |
| PCX-1622 |
1600×2150 |
2300×980 |
≤300 |
600-900 |
315×2 |
4100×3500×3000 |
| Model | Rotor diameter×length (mm) |
Feed opening Length×width (mm) |
Feeding size (mm) |
Capacity (t/h) |
Power (kw) |
Total weight (t) |
| PCZ1308 | 1300×790 | 910×890 | ≤400 | 100-160 | 132 | 2880×2130×2390 |
| PCZ1410 | 1400×1000 | 1020×750 | ≤500 | 180-230 | 4P 160/2×90 | 2830×2100×2485 |
| PCZ1610 | 1600×1000 | 1150×1000 | ≤600 | 260-350 | 132×2 | 3370×2415×2750 |
| PCZ1615 | 1600×1500 | 1400×1000 | ≤600 | 380-550 | 200×2 | 3370×2925×2750 |
| PCZ1716 | 1700×1600 | 1640×1300 | ≤650 | 600-850 | 250×2 | 3520×3000×3210 |
| PCZ1720 | 1700×2000 | 1980×1300 | ≤650 | 700-1000 | 400×2 | 3670×3390×3330 |
| PCZ1920 | 1900×2000 | 1850×1600 | ≤800 | 900-1500 | 500×2 | 3729×3300×4450 |
| PCZ2225 | 2200×2500 | 2100×2300 | ≤1200 | 1500-3000 | 1250 | 4620×5380×4780 |
| Model |
Max.Feeding Size（mm） |
Capacity（t/h） |
| PCX0706 |
≤200 |
50-75 |
| PCX0808 |
≤200 |
80-100 |
| PCX0910 |
≤200 |
150-200 |
| PCX1012 |
≤250 |
250-300 |
| PCX1213 |
≤250 |
300-350 |
| PCX1216 |
≤250 |
400-500 |
| PCX1220 |
≤250 |
500-700 |
| PCX1622 |
≤300 |
600-900 |
| Model | Feeding size (mm) |
Capacity (t/h) |
| PCZ1310 | ≤400 | 100-160 |
| PCZ1410 | ≤500 | 180-230 |
| PCZ1610 | ≤600 | 260-350 |
| PCZ1615 | ≤600 | 380-550 |
| PCZ1716 | ≤650 | 600-850 |
| PCZ1720 | ≤650 | 700-1000 |
| PCZ1900 | ≤800 | 900-1500 |
| PCZ2225 | ≤1200 | 1500-3000 |
For customization, please contact us.
