Application areas: gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.
Made in China
Two weeks delivery, custom cycle, please consult

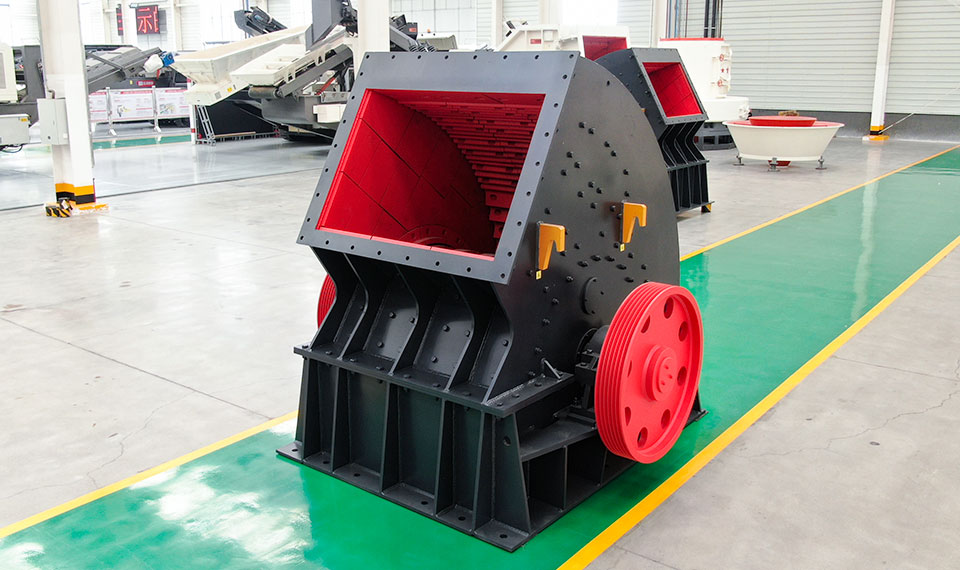

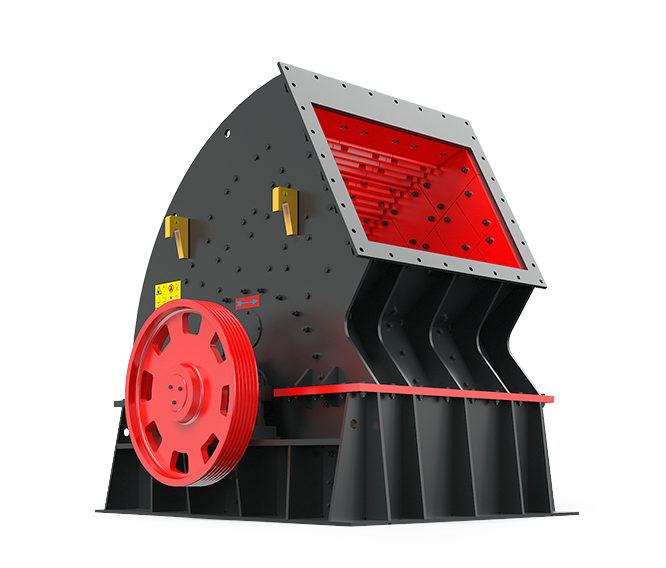

PCX Hammer Shaping Crusher is widely used in many industries such as mining, smelting, building materials, highway, rail-way, water conservancy and chemical industry. It is suitable for crushing various medium hardness and brittle materials with compressive strength less than 150Mpa, such as limestone, bluestone, coal gangue, etc.

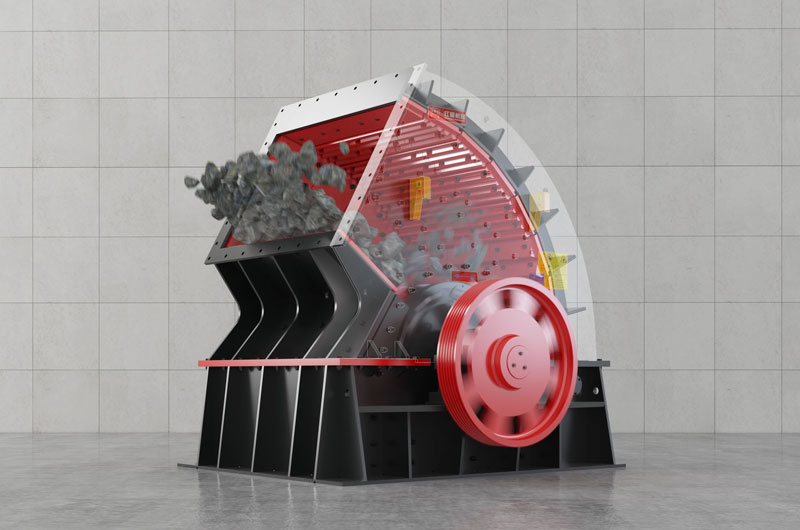

The main working part of the hammer crusher is the rotor with hammers (also called hammer heads). The rotor of the hammer crusher consists of a main shaft, a disc, a pin shaft and hammers. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feed port and is crushed by the impact, impact, shearing and grinding of the high-speed hammers. There is a screen plate at the bottom of the rotor. The particles smaller than the size of the screen hole in the crushed material are discharged through the screen plate, and the coarse particles larger than the size of the screen hole are retained on the screen plate and continue to be hit and ground by the hammers, and finally discharged from the machine through the screen plate.
copper ore, quartz stone, limestone, coal, coal gangue, river pebbles, etc.
Finished product specification: 10-350 (unit: mm) Processing materials:
Cost Reduced, Low Consumption : molding for one time, there is no need for secondary crushing and shaping process, so it can reduce cost by about 40%, energy consumption, and investment
Widely Applied : it is particularly suitable for crushing limestone and stone with a compressive strength of less than 200Mpa
High Degree of Automation : Use an external oil pump, fuel tank, pipeline lubrication system. The machine can automatically shut down when the oil temperature is too high or the oil flow rate is too slow
The price of the PCX hammer shaping crusher is affected by many factors. The equipment price of different sizes and models also vary greatly, including the technology selected by the equipment and the production requirements of the users. Also, according to the materials selected by different manufacturers and different production areas, the difference in economic consumption level can make the price of equipment fluctuate.
As a powerful production enterprise, Hongxing Machine has always adopted a more reasonable preferential strategy for the price of equipment. The small profit marketing model allows users to buy high-end equipment at a more reasonable price. For a specific price, please click on the online consultation.
| Model |
Rotor×Length（mm） |
Feed Opening Length×Width（mm） |
Max.Feeding Size（mm） |
Capacity（t/h） |
Power（kw） |
Dimensions（L×W×H（mm） |
| PCX-0706 |
700×570 |
618×510 |
≤200 |
50-70 |
75 |
1950×1340×1480 |
| PCX-0808 |
800×750 |
780×610 |
≤200 |
80-100 |
132 |
2280×1790×1570 |
| PCX-0910 |
900×1000 |
1070×750 |
≤200 |
150-200 |
110×2 |
2600×2200×1940 |
| PCX-1012 |
1000×1180 |
1315×900 |
≤200 |
250-300 |
132×2 |
2760×2430×2290 |
| PCX-1213 |
1260×1280 |
1430×1010 |
≤250 |
300-350 |
160×2 |
3067×2622×2580 |
| PCX-1216 |
1260×1490 |
1630×1010 |
≤250 |
400-500 |
200×2 |
3067×2832×2580 |
| PCX-1220 |
1260×1950 |
2090×1010 |
≤250 |
500-700 |
220×2 |
3067×3380×2580 |
| PCX-1622 |
1600×2150 |
2300×980 |
≤300 |
600-900 |
315×2 |
4100×3500×3000 |
| Model |
Max.Feeding Size（mm） |
Capacity（t/h） |
| PCX0706 |
≤200 |
50-75 |
| PCX0808 |
≤200 |
80-100 |
| PCX0910 |
≤200 |
150-200 |
| PCX1012 |
≤250 |
250-300 |
| PCX1213 |
≤250 |
300-350 |
| PCX1216 |
≤250 |
400-500 |
| PCX1220 |
≤250 |
500-700 |
| PCX1622 |
≤300 |
600-900 |
For customization, please contact us.
