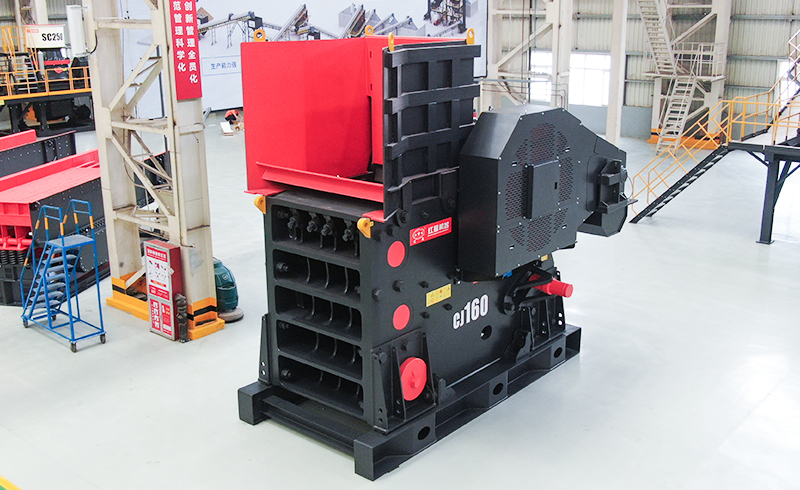

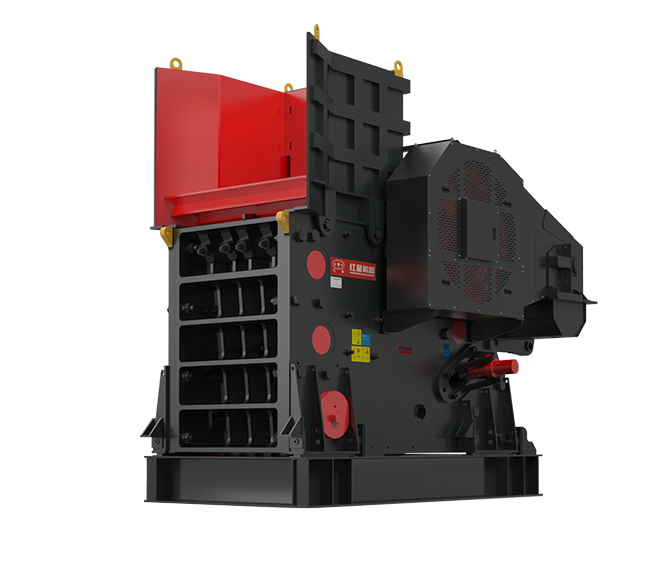

CJ Series European Type Jaw Crusher-Jaw Crusher Machine

Product Introduction

The CJ Series Jaw Crusher is a jaw crusher with excellent performance introduced by Henan Fote Heavy Machinery Co., Ltd. based on the needs of customers. Different from the traditional jaw crusher, its frame is non-welded but detachable, which is convenient for transportation and installation.

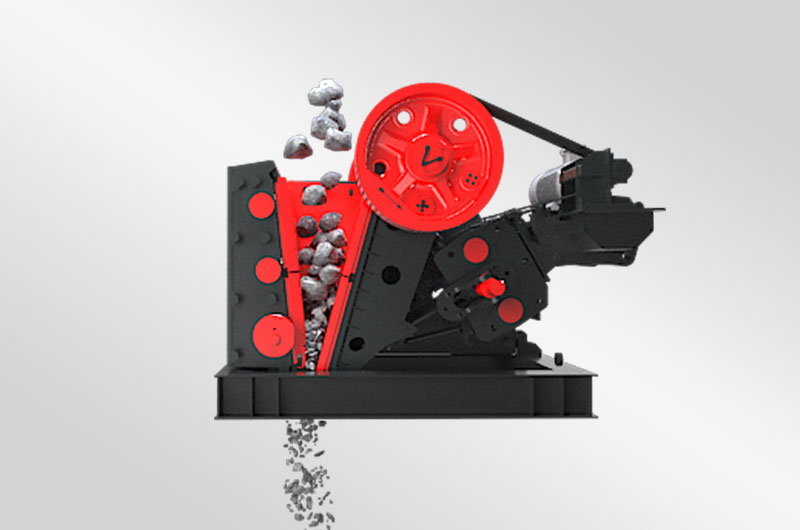

Working Principle

The CJ Series Jaw Crusher has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation, installation, maintenance and adjustment. It is particularly suitable for fixed crushing lines and mobile crushing plants. The CJ Series Jaw Crusher has a maximum production capacity of 1160 t/h. Compared with the previous jaw crusher of the same specification, the bearing size is enlarged and the service lifespan is prolonged. The 4 bearings of the movable jaw and the frame are the same, which reduces the types of spare parts.

Working Principle

CJ Series European Type Jaw Crusher Features:

Bolted frame,durable and convenient for transportation;
Optimized motion parameters,reduced wear and high productivity;
Deep V-shaped crushing chamber with strong interlock and smooth discharging;
Integral motor bracket,synchronized vibration,space saving;
Wedge adjusting discharge port,convenient and quick to clear the cavity.

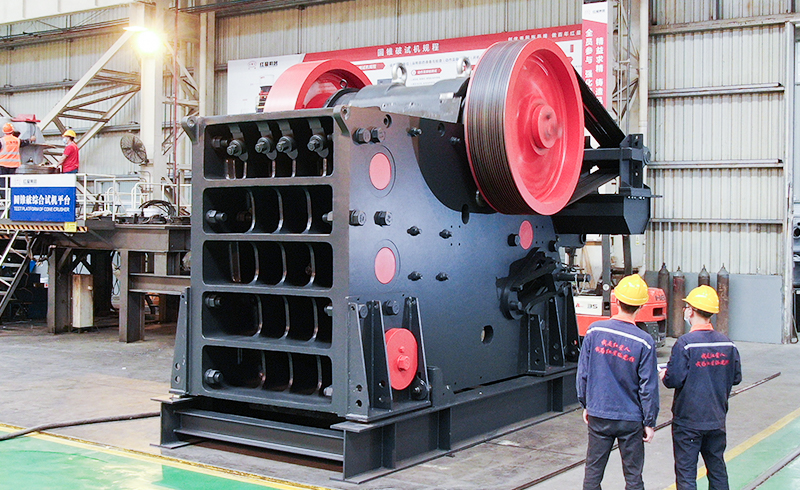

CJ series of euro jaw crusher production site

Product
presentation

About Us

Hongxing CJ series of Euro jaw crusher, combined with European advanced production technology, has become an ideal choice for crushing hard and highly corrosive stone. Hongxing provides customized production of the CJ series of Euro jaw crusher, which can provide users with more suitable and efficient CJ series of Euro jaw crushers according to the actual needs of users.

The products are sold to more than 100 countries and regions around the world, including South Africa, Zimbabwe, Nigeria, Ethiopia, Saudi Arabia, Philippines, Indonesia, Mexico, Brazil, and other countries.

We are committed to 100% of the price of the show. If you need more product information or price lists, you can contact our online technical people for free or send an email to sinohxjq@hxjq.com

Technical data

CJ Series Jaw Crusher

Model	Maximum Feeding size（mm）	Feeding opening size L×W（mm）	Adjustment range of discharge port（mm）	Capacity（t/h）	Power（KW）	Dimensions L×W×H（mm）
CJ96	480	930×580	60-175	105-390	4P 90	2850×2270×1950
CJ106	560	1060×700	70-200	150-500	4P 110	3280×2580×2400
CJ120	700	1200×870	70-200	175-610	4P 160	3700×2790×2950
CJ125	760	1250×950	100-250	270-831	4P 160	4230×2780×2960
CJ150	960	1400×1200	125-250	340-880	4P 200	5030×3440×3970
CJ160	960	1600×1200	150-300	430-1145	4P 250	5780×3460×3580
CJ200	1200	2000×1500	175-300	630-1435	6P 400	6600×4030×4400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

CJ Series Jaw Crusher

Model	Maximum Feeding size（mm）	Capacity（t/h）
CJ96	480	105-390
CJ106	560	150-500
CJ120	700	175-610
CJ125	760	270-831
CJ150	960	340-880
CJ160	960	430-1145
CJ200	1200	630-1435

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

For customization, please contact us.
