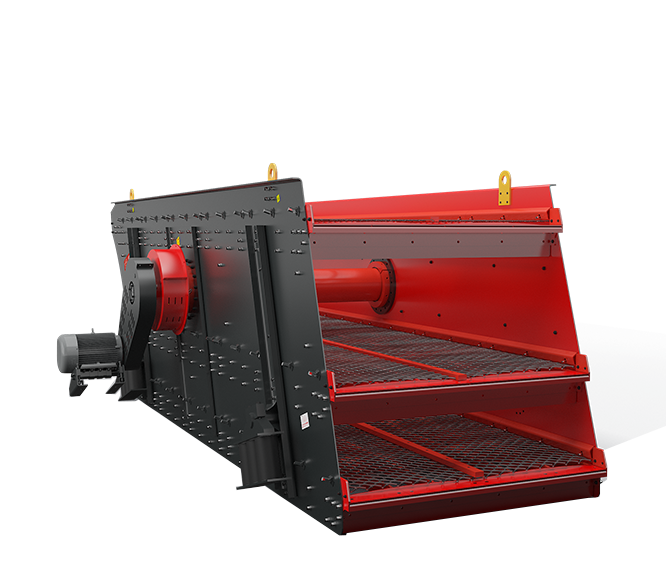

YK Series Vibrating Screen

YK Series Vibrating Screen

Chat OnlineChat Online

iconProcessing capacity:8-800m³/h

iconMax. feeding size:400mm

iconApplied materials: limestone, dolomite, cement clinker, iron ore, molybdenum ore, aluminum ore, pebbles, rock.

mail Send e-mail info@hxjq.com

Product Introduction

The YK series vibrating screen uses a block eccentric vibrator,and the motor is directly driven through a flexible coupling.It has the characteris- tics of advanced structure,strong excitation force,low vibration noise, easy maintenance,solid and durable.

YK series vibrating screen applications and applicable materials

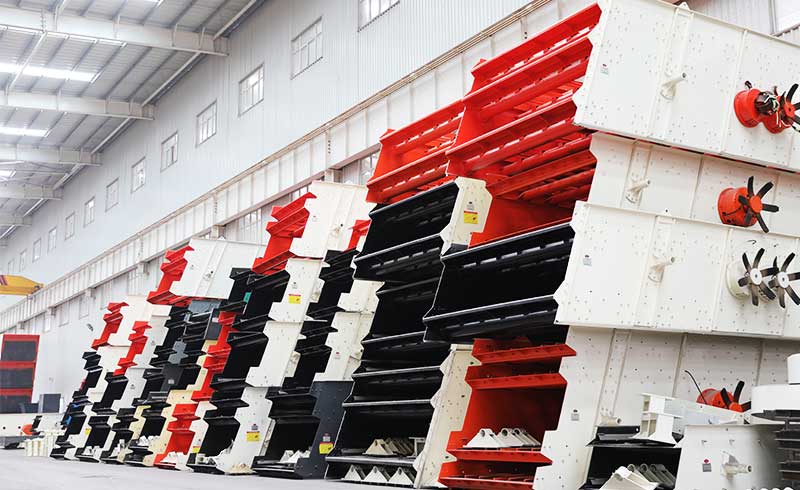

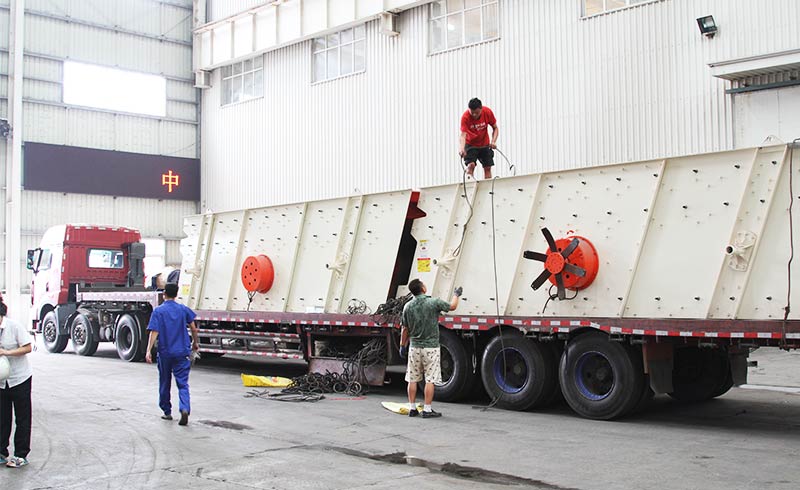

YK series vibrating screen production site

Why Choose Our Products

Nearly 40 years of mining equipment technology and experience make the vibrating screen a simple, rational and compact structure. Rigorous quality management guarantees the superior quality of each machine.

The machine is sold to more than 120 countries and regions around the world. Such as Zimbabwe, Ethiopia, Zambia, Guinea, Kenya, Algeria, Egypt, Saudi Arabia, Kazakhstan, Turkey, Oman, Azerbaijan, India, Nepal, the Philippines, Pakistan, Malaysia, Canada, Austria, Italy, Papua New Guinea, New Zealand, Mexico, Brazil, and other countries.

We guarantee 100% ex-factory price and provide customers with satisfactory products. Welcome to consult.

Parameter Table Of YK Series Vibrating Screen

YK Series Vibrating Screen
Model Sieve Layer Sieve Area
(㎡)
Processing capacity
(m³/h)
2YK1230 2 7.2 12-78
3YK1230 3 10.8 13-80
2YK1237 2 8.88 15-86
3YK1237 3 13.32 16-90
2YK1548 2 14.4 22.5-162
3YK1548 3 21.6 22.5-162
4YK1548 4 28.8 22.5-162
2YK1854 2 19.44 32-312
3YK1854 3 29.16 32-312
4YK1854 4 38.88 32-336
2YK2160 2 25.2 50-475
3YK2160 3 37.8 50-475
4YK2160 4 50.4 50-497
2YK2460 2 28.8 65-550
3YK2460 3 43.2 70-620
4YK2460 4 57.6 80-680
2YK2866 2 31 70-650
3YK2866 3 47 80-700
4YK2866 4 62 90-750
2YK2873 2 39.2 70-680
3YK2873 3 58.8 80-720
4YK2873 4 58.8 90-950

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
