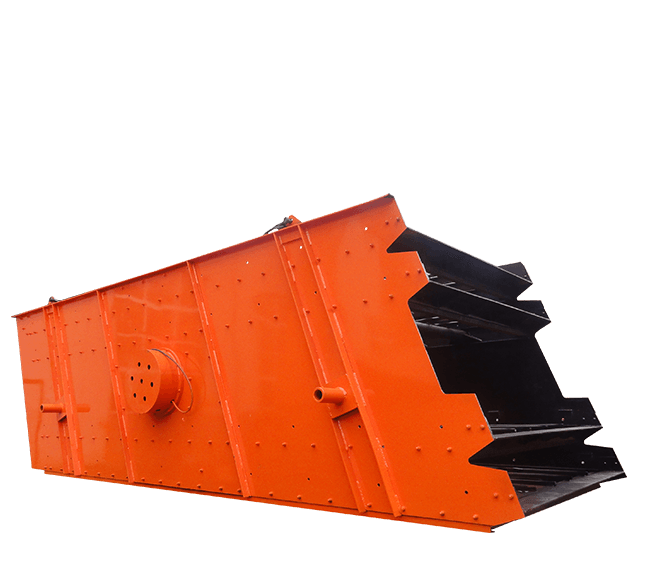

Sand Screening Machine

Sand Screening Machine

Chat OnlineChat Online

iconMax. feeding size:400mm

iconScreen size:4-100mm

iconProcessing capacity:8-800m³/h

Applied material: limestone, dolomite, cement clinker, iron ore, molybdenum ore, aluminum ore, pebbles, rock.

mail Send e-mail info@hxjq.com

Product Introduction

The sand screening machine is a kind of common screening machine, widely used in crushing, and sand making, and mineral processing. The vibrating screen is a multi-layer, high-efficiency new vibrating screen, also known as a sorting screen or a screening machine.

Features

  1. Sand screening machine with simple structure, convenient maintenance, easy to change the screen surface

  2. Low sieving energy consumption per ton of materials, and environmental protection

  3. Sand screening machine with strong excitation force, no material blockage, high production efficiency

  4. Small vibrating noises, firm and durable construction

People-oriented, Customer First, Innovation

With the “people-oriented, customer first, innovation” concept in management and service, except for offering clients our products, we also provide them with reasonable model selection, process allocation, and technical support, to make clients obtain the biggest benefit with a small investment. Thus, we are ready to do clients a favor at any time.

Parameter Table Of Sand Screening Machine

Sand Screening Machine
Model Sieve Layer Sieve Area
(㎡)
Processing capacity
(m³/h)
2YK1230 2 7.2 12-78
3YK1230 3 10.8 13-80
2YK1237 2 8.88 15-86
3YK1237 3 13.32 16-90
2YK1548 2 14.4 22.5-162
3YK1548 3 21.6 22.5-162
4YK1548 4 28.8 22.5-162
2YK1854 2 19.44 32-312
3YK1854 3 29.16 32-312
4YK1854 4 38.88 32-336
2YK2160 2 25.2 50-475
3YK2160 3 37.8 50-475
4YK2160 4 50.4 50-497
2YK2460 2 28.8 65-550
3YK2460 3 43.2 70-620
4YK2460 4 57.6 80-680
2YK2866 2 31 70-650
3YK2866 3 47 80-700
4YK2866 4 62 90-750
2YK2873 2 39.2 70-680
3YK2873 3 58.8 80-720
4YK2873 4 58.8 90-950

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
