Application fields: which can be widely used in the following fields such as aggregate field, concrete mixing plant, dry mortar plant, desulfurization, quartz sand, etc
Made in China
Two weeks delivery, custom cycle, please consult

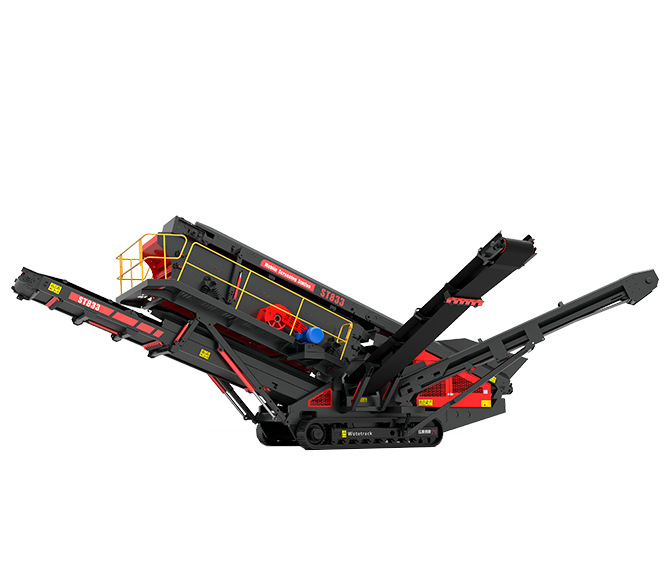

The crawler type wotetrack mobile screening station, also called circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. Advantages are: stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety.
The material can be evenly transported to the jaw crusher through the feeder. After the primary crushing, the material is sent to the impact crusher through the conveyor for secondary crushing. After crushing, it is output and sent to the vibrating screen. The materials that the conveyor output does not meet the requirements are returned to be crushed again. The whole processing process is a complete production line, which can realize the cyclic crushing of materials and meet the production requirements of customers.
Wotetrack mobile screening station can process those materials such as river gravel, granite, basalt, quartz, iron ore, diabase, limestone, coal gangue
Finished product specification: 10-350 (unit: mm) Processing materials:
| Model | ST673 | ST993 | ST1303 | |
| Dimensions of Transmission Devices | Length | 11000mm | 12500mm | 12500mm |
| Width | 3800mm | 4000mm | 4000mm | |
| Height | 3800mm | 3900mm | 3900mm | |
| Weight | 28t | 33t | 38t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | 2700mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX1855 | 3HX2160 |
| Sieving Layers | 3 | 3 | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7400mm | 1000×7500mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 500×5300mm | 650×5400mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 500×2000mm | 650×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 57.5kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST673 and ST993
| Model | ST673 | ST993 | |
| Dimensions of Transmission Devices | Length | 11000mm | 12500mm |
| Width | 3800mm | 4000mm | |
| Height | 3800mm | 3900mm | |
| Weight | 28t | 33t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX2160 |
| Sieving Layers | 3 | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7400mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 500×5300mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 500×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST1303
| Model | ST1303 | |
| Dimensions of Transmission Devices | Length | 12500mm |
| Width | 4000mm | |
| Height | 3900mm | |
| Weight | 38t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×13000mm |
| Loading Height | 2700mm | |
| Vibrating Screen | Model | 3HX2160 |
| Sieving Layers | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7500mm |
| Discharging Height | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 650×5400mm |
| Discharging Height | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 650×2000mm |
| Discharging Height | 2130mm | |
| Diesel Engine | Power | 96kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | |
For customization, please contact us.
