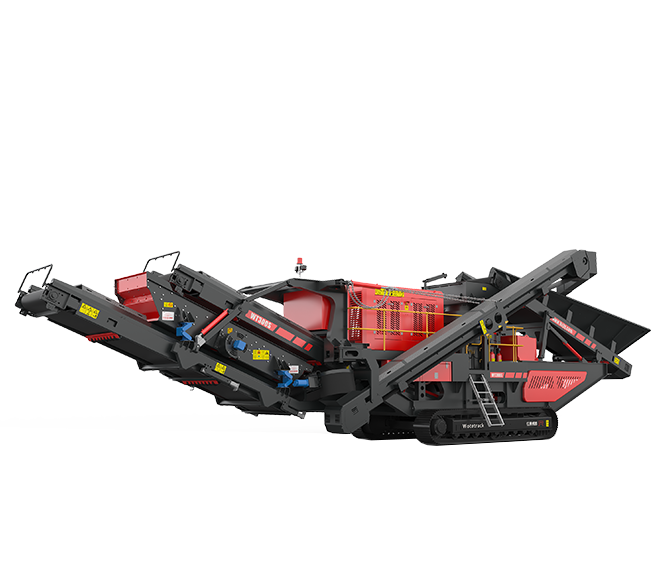

Wotetrack impact crusher station
Chat Online
Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.
Feeding Size: ≤600mm
Minimum discharge opening size: 25mm
Product Introduction
Crawler type impact crusher station are renown for their versatility and capabilities in the reduction and sizing of soft to medium natural granite and limestone and non-abrasive materials as well as recycling construction demolition waste
Features
-
1. Closed or open circuit processes available
-
2. Single unit for primary and secondary applications
-
3. Processing of medium-hard stone like limestone
-
4. All rock-based demolition materials : bricks, concrete, asphalt
The Advantage and Benefits of Wotetrack Mobile Impact Crusher:
Wotetrack mobile impact crusher plant with the advantages of free foundation, easily move to different work sites, closes to crushing site, low transportation cost.
Parameter Table Of Wotetrack impact crusher station
Wotetrack impact crusher stationModel WT110 and WT110S
Model |
WT110 |
WT110S |
Dimensions of Transmission Devices |
Length |
14000mm |
17000mm |
Width |
3000mm |
3200mm |
Height |
3600mm |
3600mm |
Weight |
40t |
45t |
Feeder |
Hopper Volume |
3m³ |
5m³ |
Loading Height |
3900mm |
4000mm |
Primary Screen |
Power |
5.2kw |
6.12kw |
Sieve Dimensions |
1040×924mm |
1040×924mm |
Crusher |
Model |
CI1110M |
CI1315M |
Inlet Dimensions |
1020×860mm |
1020×860mm |
Max.Feeding Size |
400mm |
400mm |
The Feeder at the Bottom |
Hopper Volume |
0.8m³ |
1.5m³ |
Power |
5.2kw |
5.2kw |
Unearthed Belt Conveyors |
Dimensions(Width×Length) |
650×3500mm |
650×3500mm |
Dumping Height |
2200mm |
2200mm |
Main Belt Conveyor |
Dimensions(Width×Length) |
1000×8500mm |
1200×11000mm |
Dumping Height |
3300mm |
3300mm |
Secondary Screen |
Power |
○ |
○ |
Sieve Dimensions |
○ |
1500×3600 |
Belt Conveyors at the Bottom |
Dimensions(Width×Length) |
○ |
○ |
Dumping Height |
○ |
2900mm |
Transferring Belt Conveyor |
Dimensions(Width×Length) |
○ |
○ |
Dumping Height |
○ |
1400mm |
Belt Conveyors for Discharging Material |
Dimensions(Width×Length) |
○ |
○ |
Dumping Height |
○ |
4200mm |
Iron Remover |
Model |
RCYQ-10 |
RCYQ-10 |
Diesel Engine |
Power |
96kw |
132kw |
Manufacturer |
Carter Perkins |
Carter Perkins |
The Main Machine |
Power |
253kw |
366kw |
Ways of Controlling |
Wired/Wireless (optional) |
Wired/Wireless (optional) |
Model WT1213 and WT1213S
Model |
WT1213 |
WT1213S |
Dimensions of Transmission Devices |
Length |
15500mm |
17000mm |
Width |
3200mm |
3600mm |
Height |
3800mm |
3800mm |
Weight |
53t |
60t |
Feeder |
Hopper Volume |
5m³ |
5m³ |
Loading Height |
3900mm |
4100mm |
Primary Screen |
Power |
6.12kw |
6.12kw |
Sieve Dimensions |
1140×924mm |
1140×924mm |
Crusher |
Model |
CI1213M |
CI1315M |
Inlet Dimensions |
1320×900mm |
1320×900mm |
Max.Feeding Size |
500mm |
500mm |
The Feeder at the Bottom |
Hopper Volume |
1m³ |
1.5m³ |
Power |
5.2kw |
5.2kw |
Unearthed Belt Conveyors |
Dimensions(Width×Length) |
650×3500mm |
650×3500mm |
Dumping Height |
2200mm |
2200mm |
Main Belt Conveyor |
Dimensions(Width×Length) |
1000×9900mm |
1200×11000mm |
Dumping Height |
3500mm |
3500mm |
Secondary Screen |
Power |
○ |
○ |
Sieve Dimensions |
○ |
1500×4200 |
Belt Conveyors at the Bottom |
Dimensions(Width×Length) |
○ |
○ |
Dumping Height |
○ |
3000mm |
Transferring Belt Conveyor |
Dimensions(Width×Length) |
○ |
○ |
Dumping Height |
○ |
1400mm |
Belt Conveyors for Discharging Material |
Dimensions(Width×Length) |
○ |
○ |
Dumping Height |
○ |
4500mm |
Iron Remover |
Model |
RCYQ-10 |
RCYQ-10 |
Diesel Engine |
Power |
106kw |
132kw |
Manufacturer |
Carter Perkins |
Carter Perkins |
The Main Machine |
Power |
304kw |
366kw |
Ways of Controlling |
Wired/Wireless (optional) |
Wired/Wireless (optional) |
Model WT1315
Model |
WT1315 |
Dimensions of Transmission Devices |
Length |
17000mm |
Width |
3200mm |
Height |
3800mm |
Weight |
65t |
Feeder |
Hopper Volume |
5m³ |
Loading Height |
4000mm |
Primary Screen |
Power |
6.12kw |
Sieve Dimensions |
1240×930mm |
Crusher |
Model |
CI1315M |
Inlet Dimensions |
1540×900mm |
Max.Feeding Size |
600mm |
The Feeder at the Bottom |
Hopper Volume |
1.5m³ |
Power |
6.12kw |
Unearthed Belt Conveyors |
Dimensions(Width×Length) |
650×3500mm |
Dumping Height |
2400mm |
Main Belt Conveyor |
Dimensions(Width×Length) |
1200×11000mm |
Dumping Height |
3800mm |
Secondary Screen |
Power |
○ |
Sieve Dimensions |
○ |
Belt Conveyors at the Bottom |
Dimensions(Width×Length) |
○ |
Dumping Height |
○ |
Transferring Belt Conveyor |
Dimensions(Width×Length) |
○ |
Dumping Height |
○ |
Belt Conveyors for Discharging Material |
Dimensions(Width×Length) |
○ |
Dumping Height |
○ |
Iron Remover |
Model |
RCYQ-10 |
Diesel Engine |
Power |
132kw |
Manufacturer |
Carter Perkins |
The Main Machine |
Power |
366kw |
Ways of Controlling |
Wired/Wireless (optional) |
