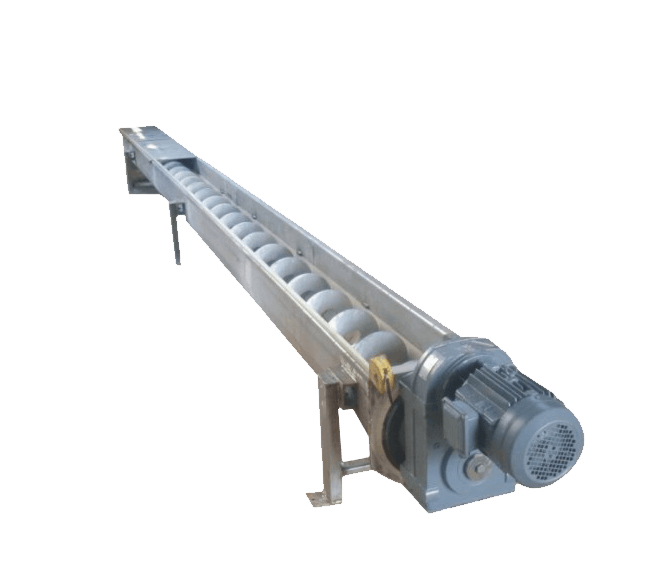

Spiral Conveyor

Spiral Conveyor

Chat OnlineChat Online

iconCapacity: 2.2-96.1m³/h

iconLength: 10-30m

iconPowder: 1.1-15.3Kw

mail Send e-mail info@hxjq.com

Product Introduction

Spiral conveyors are widely used in the transportation of bulk materials and parts in metallurgical, coal, transportation, hydropower and other industrial sectors. Depending on the specific conveying requirements, a Spiral conveyor or multiple Spiral conveyors can be used in combination with other conveyors to form a tilted conveyor system

Features

  1. The Spiral conveyor has a simple structure, convenient maintenance and low cost.

  2. The conveying volume is large and the conveying distance is long.

  3. Low noise, stable delivery, standard spare parts.

Parameter Table Of Spiral Conveyor

Spiral Conveyor
Specification Capacity
(m³/h)
Power
(kw)
100 2.2 1.1-1.6
160 7.6 1.5-2.8
200 11 2.2-3.2
250 22 2.4-5.3
315 36.4 3.2-8.4
400 66.1 5.1-11
500 96.1 4.1-15.3
