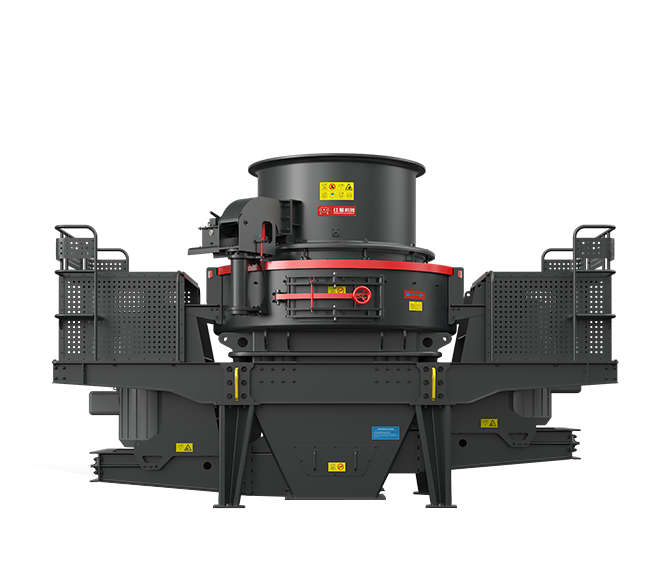

HVI Series Sand Making Machine

Application fields：metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.

Processing capacity:70-585t/h
Max.Feeding size:30-55mm

Email us ( sinohxjq@hxjq.com ) , we will reply to you within 24 hours. Get a quote

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The HVI series impact sand making machine integrates multiple crushing modes and has become a core equipment in the mechanism sand industry.It can be widely used for crushing and shaping metal ores and non-metallic ores,building materials,artificial sand making,and various metallurgical slag.

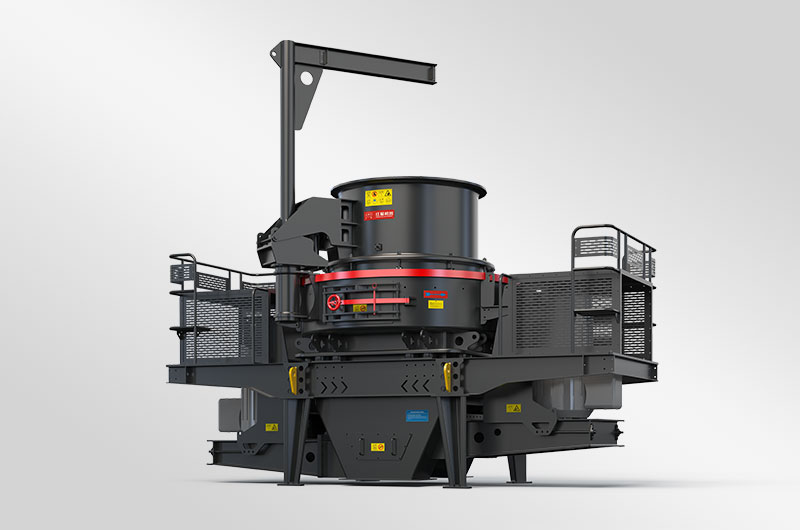

Working Principle

The impeller structure adopts a unique deep cavity four-port design to increase material throughput by more than 30% and special bulk tray design to convert quickly feeding and waterfall feeding, effectively reducing downtime, adjustment time, and improving work efficiency. The final products have cube form and the shaping effect is good, the iron pollution is extremely small, and the size of the grain can be adjusted according to actual needs.

Working Principle

HVI Series Sand Making Machine Features:

Deep cavity impeller-improves crushing efficiency and increases its throughout;
Reasonable selection of crushing principle impact crushing,excellent granules;
Lubrication-thin oil -type and grease -type modular design can achieve overall interchange.
Core wear resistance-high wear resistance impact material.

Product
presentation

Learn More About Us

The sand making equipment produced by our company is mainly: HVI sand making machine, VSI sand making machine, HX sand making machine and so on.

A complete set of sand making machine production line will be composed of crushing equipment, sand making equipment and conveying equipment. According to different process requirements, various types of equipment are combined to meet the different needs of customers.

The products are sold to more than 160 countries and regions around the world. Such as South Africa, Zimbabwe, Nigeria, Ethiopia, Saudi Arabia, Philippines, Indonesia, Mexico, Brazil and other countries. We guarantee 100% ex-factory price. If you need more product information or price list, you can contact our online customer service for free, or send an email to sinohxjq@hxjq.com

Technical data

HVI Sand Making Machine

Model	Hard material	Soft material	Sand Shaping	Sand Making	Motor Power（kw）
Model	Max.Feeding Size （mm）		Throughput（t/h）		Motor Power（kw）
HVI 0815	<30	<35	50-140	90-230	2×75
HVI 0818	<30	<35	60-190	110-283	2×90
HVI 0922	<35	<40	70-210	150-330	2×110
HVI 0926	<35	<40	85-240	170-380	2×132
HVI 1032	<40	<45	130-278	180-400	2×160
HVI 1040	<40	<45	180-284	250-440	2×200
HVI 1263	<50	<55	320-498	370-585	2×315

HVI Sand Making Machine

Model	Sand Shaping	Sand Making	Motor Power (kw)
Model	Max.Feeding Size （mm）		Motor Power (kw)
HVI 0815	50-140	90-230	2×75
HVI 0818	60-190	110-283	2×90
HVI 0922	70-210	150-330	2×110
HVI 0926	85-240	170-380	2×132
HVI 1032	130-278	180-400	2×160
HVI 1040	180-284	250-440	2×200
HVI 1263	320-498	370-585	2×315

For customization, please contact us.
