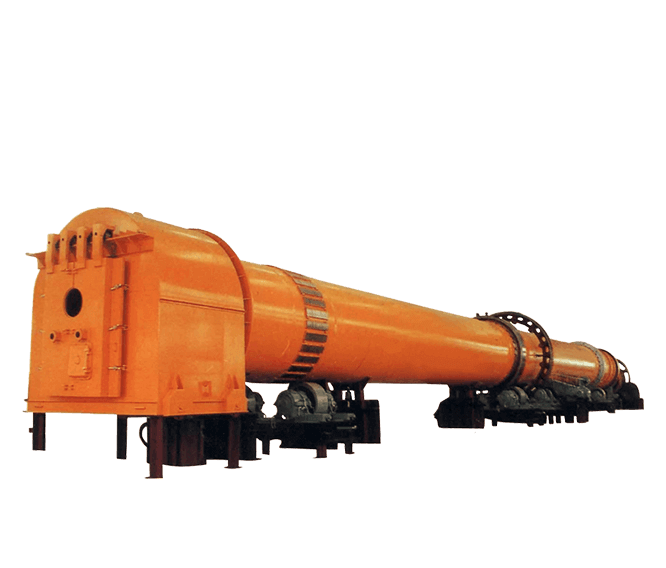

Lime Kiln

Lime Kiln

Chat OnlineChat Online

iconProcessing capacity: 180-10000t/d

iconMotor power: 55-950×2kw

iconApplicable materials: limestone, cement clinker, bauxite, activated lime, aluminum hydroxide, etc.

Application field: It is mainly used for magnetization roasting of iron ore in iron and steel mines in metallurgical industry; oxidizing roasting of chromium and ilmenite.

mail Send e-mail info@hxjq.com

Product Introduction

As a kind of rotary kiln, the lime kiln, also called active lime rotary kiln, is the main equipment used to calcine active lime, consisting of the drum body, the supporting device, the supporting device with hydraulic retaining wheel, the device, the device, the device for kiln tail.

lime kiln application and applicable materials

Features

  1. 1. Effectively improving the preheating effect and high decomposition rate.

  2. 2. The Kiln lining is made from composite refractory material to reduce heat loss.

  3. 3. The simple structure; reliable operation; and convenient for the automation control.

  4. 4. The lime kiln has an advanced structure and adopts the both-ends combined sealing scales, which can decrease the possibility of air leakage.

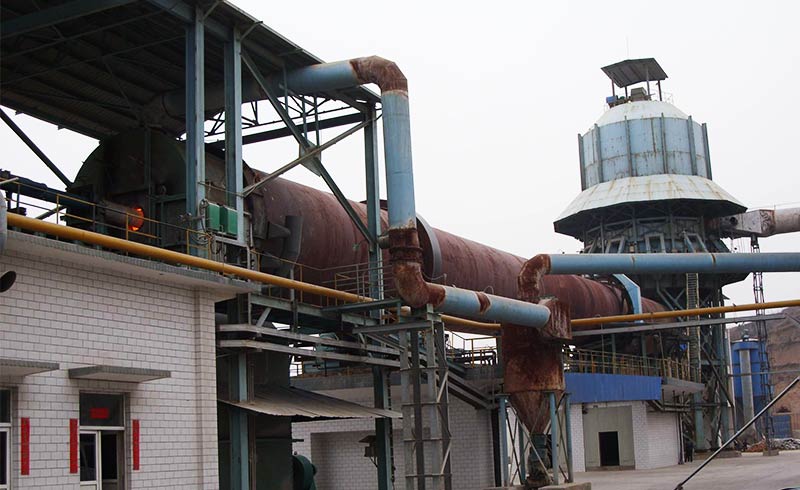

lime kiln production site

Working Principle

Inside the kiln, coal powder or natural gas generates a quantity of heat, which, by the transfer of air, heats the material. At the moment, with the constant rotation of the kiln body based on the design of the slope and speed, the material rolls and advances inside the kiln periodically from the feeding end toward another end. In this period, the material has been calcined into the qualified clinker.

After-sale Service

Service Concept: Creating value for clients; satisfying clients’ needs.

Service Target: Beyond clients’ expectation; beyond industry standards.

Service Strategy: To lower the clients’ cost by the standard, diverse, and beneficial service, to increase Hongxing’s competitiveness in brand and service.

Service Guarantee: 24h online technical people for you; if the fault hasn’t been disposed of completely, our service engineer can’t leave the actual site until we get the client’s permission.

Parameter Table Of Lime Kiln

Lime Kiln
Design
capacity
(t/d)
Specification
(m)
Burning
temperature
(°C)
150 Φ2.5
× 40
1350/
1250
200 Φ2.8
× 42
1350/
1250
250 Φ3
× 46
1350/
1250
300 Φ3.2
× 50
1350/
1250
350 Φ3.5
× 54
1350
400 Φ3.6
× 56
1350
500 Φ3.8
× 58
1350
600 Φ4×60
Φ4.2×50
1350
750 Φ4.3
× 58
1350
800 Φ4.3
× 64
1350
1000 Φ4.8
× 68
1350
