Clinker Grinding Station

Clinker Grinding Station

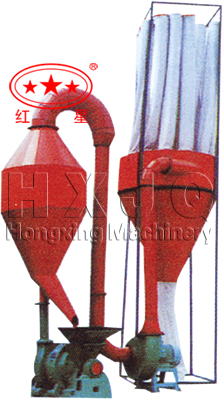

Detailed Dust Collector Description

The dust collector, a kind of medium-sized and small de-dusting device, is featured with compact structure, reliable operation and convenient installation and maintenance. This machine is equipped with a de-dusting device of low consumption, which can clean all kinds of felt filtration bags of 2m, 2.5m and 3m with low pressure and short pulse blowing, achieving efficient and satisfactory effect and it is ideal equipment for dust cleaning in all industries.

In this type of dust collector, the filter bags are shaken as they become more agglomerated with dust particles, preventing dust re-entrainment. This keeps the filters from achieving potential maximum efficiency, but reduces maintenance time and filter replacement cost. The design simplicity of the mechanical shaker type dust collector is one of the reasons it is so popular in today's industry.

Operating Process of Dust Catcher

Ø The dust-laden air enters the bag filter bustle.

Ø The air is uniformly distributed avoiding channeling.

Ø Initially a coat of material forms on the bags. Subsequently, the coat acts as the filtering medium.

Ø The dust is accumulated on filter elements while the air passes thorough the filter bags from outside to inside.

Ø The accumulated powder is dislodged from the bags by reverse pulse-jet air intermittently.

Ø The dislodged powder falls on bottom cone and is discharged through powder discharge valves.

Ø The dust free air is sucked by induced draft fan and is exhausted to atmosphere.

Ø Knockers are provided on conical portion especially for sticky/hygroscopic materials.

Clinker Grinding Station Characteristics

1. The design of the piston rings in the mouths of the filter bags can make the good seal and the expedient assembly and removal of them.

2. The cages of the fi lter bags, with the high strength and stif fness, are made of the super quality steel wires with the multiple spot welding in the automatic production line and galvanized for protection, whichcan prevent the welding burrs from having any damage to the filter bags and reduce the friction between the filter bags and cages, which helps extend the service life of the filter bags.

3. The installation and maintenance of the filter bags through the top access door can make the replacement of dust quickly and easily.
