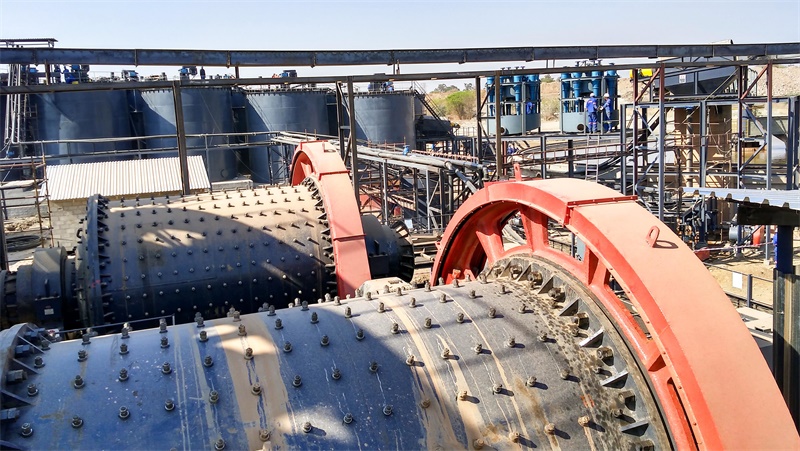

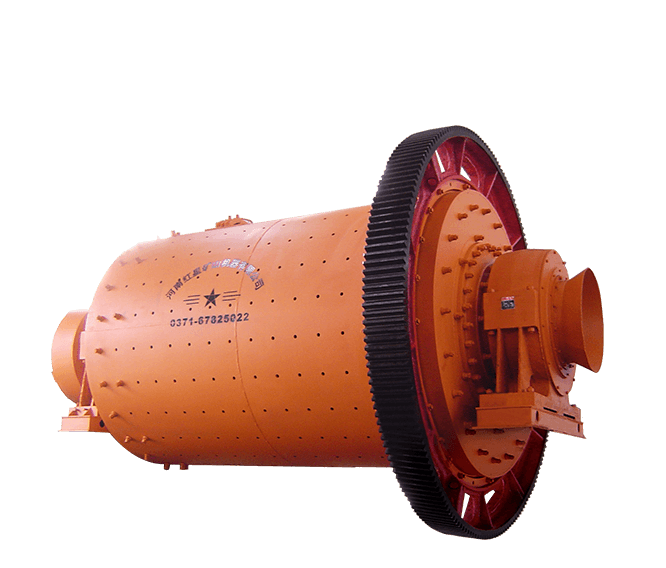

MBS Series Rod Mill

Product Introduction

Rod mill is mainly used for processing and crushing ore materials such as feldspar,quartz and pebbles.The steel rods rotate with the mill,rise to a certain height under the action of friction and centrifugal force and are thrown down,so that the materials are continuously impacted to form sand.

Features

1. Save energy

2. Rolling bearings are used instead of traditional sliding bearings to improve starting conditions,reduce the starting torque of the mill and the current during normal operation.The energy consumption of the mill dunng nommal operation is 15 to 20%lower than that of a mill using traditional bearing bushes.

4. Flexible design of the dischargedepartment,the feeding part has a large amount offeed

5. The discharge port can be selected as either grid type or overflow

6. type according to process requirements.

7. The feed inlet is equipped with a feeding spiral to force feeding,

8. which increases the feeding amount.

10. Liner castings

11. The structure,shape and material of the cylinder lining plate,end lin-

12. ing plate,compartment plate and discharge grate plate have been

13. tested by long-term production practice.

15. Use a closed system to reduce dust

16. The ultra-fine ball mill and classifier form a closed system,with neg-

17. ative pressure transportation and small dust,reducing hamm to the

18. human body.

20. Optimization of cylinder structure

21. Lining plates and grinding bodies can be made of alumina ceramics,

22. quartz,SILEX or special materials,and hard minerals are designed

23. to be free of iron pollution.

25. Dry oil spray lubrication

26. Large and small gears are lubricated with dry oil spray lubrication,

27. which has unifomm and reliable lubrication,high energy efficiency,

28. low fuel consumption,small footprint,no oil leakage,and no envi-

29. ronmental pollution.

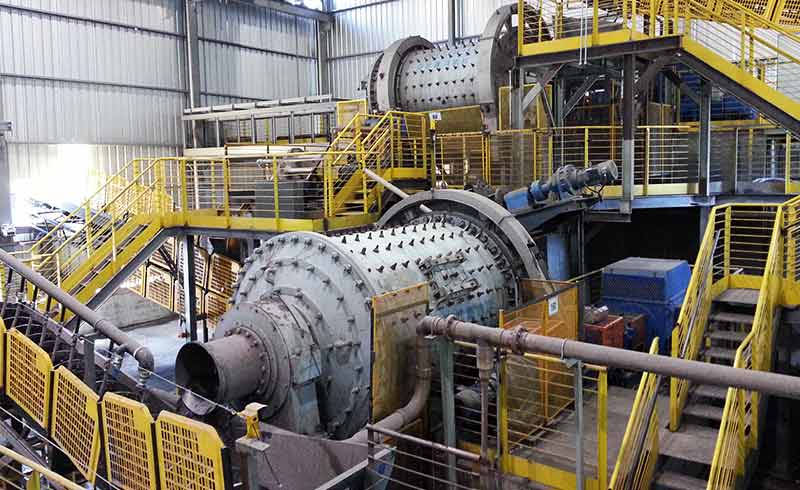

Application of Rod Mill

1. For re-election or magnetic separation equipment of tungsten-tin ore and other rare metal ores, to prevent damage caused by excessive grinding, a rod mill is often used.

2. When using a two-stage grinding process, if the first part is milled from 20-6mm to 3-1mm, the rod mill is used as the first part of the grinding equipment. More productive capacity and higher efficiency.

3. In some cases, it can be used to replace the short cone crusher for fine crushing. The configuration is simpler and the cost is low, which can simplify the dust removal in the crushing workshop.
