Application fields: metallurgy, chemical, building materials, electricity, transportation and other departments.
Made in China
Two weeks delivery, custom cycle, please consult

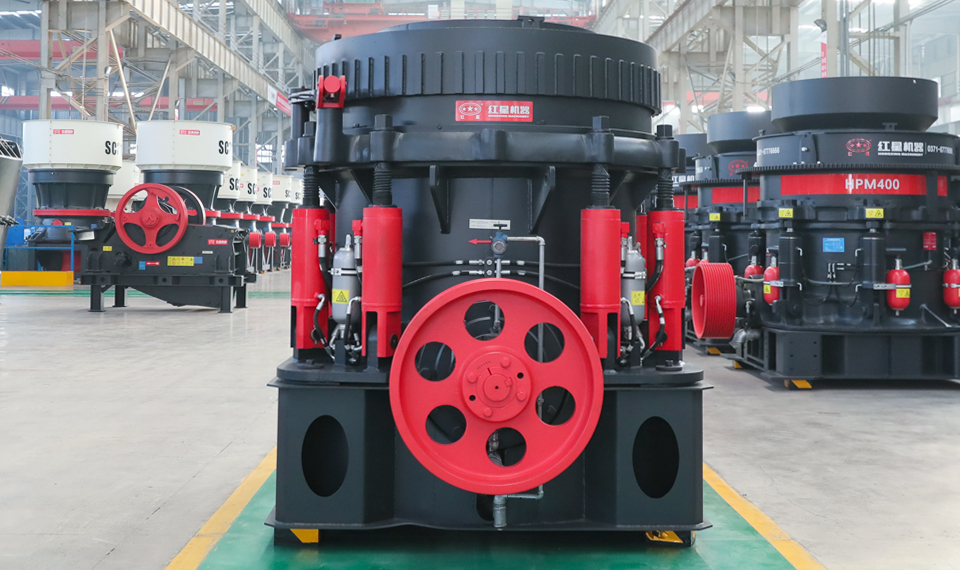

GYS cone crusher is based on our company's combination of PSG cone crusher. It adopts advanced automatic control design concepts and inherits the characteristics of reliable structure and low failure rate of traditional PSG series cone crushers, which can reduce downtime and reduce workers. Labor intensity.
During operation, the rotation of the motor drives the pulley or coupling, the transmission shaft and the cone part to make the eccentric shaft perform periodic pendulum motion below the axis line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact, extrusion, grinding and kneading of the eccentric shaft and the mortar wall. The hydraulic safety system can remove the faulty objects from the support sleeve and the fixed cone part through hydraulic pressure when the machine has an iron fault or a jamming phenomenon, which greatly reduces the maintenance rate and improves production efficiency while playing a good insurance role.
barite, calcite, coal, concrete, aggregate, gravel, basalt, cement, gypsum, limestone, granite, rock and so on.
Finished product specification: 10-350 (unit: mm) Processing materials:
The use of safety cylinder can automatically control the overload protection and cavity clearing function;
The discharge port is adjusted by hydraulic push cylinder,which is easy to adjust;
Fully automatic control system,easy to achieve remote and machine-side control;
The dust removal mechanism adopts dry oil seal.Reliable structure and low failure rate;
Hydraulic lubrication combined oil station,small size,electrical connection uses aviation plug,no wiring required;
The steel frame base structure is adopted,with low foundation requirements and reduced foundation investment.
| Model | Cavities | Broken cone big end diameter（mm） | Feeding Size（mm） | Max.feeding Size（mm） | Adjusting Range of Discharge Opening（mm） | Processing capacity（t/h） | Power（kw） |
| GYS 300 | C1 | 910 | 175 | 140 | 13-38 | 81-180 | 90 |
| C2 | 102 | 80 | 9-22 | 60-180 | |||
| F1 | 76 | 60 | 3-16 | 36-145 | |||
| F2 | 41 | 30 | 3-13 | 36-130 | |||
| GYS 400 | C1 | 1300 | 241 | 190 | 19-51 | 207-400 | 200 |
| C2 | 210 | 168 | 16-38 | 162-350 | |||
| C3 | 137 | 110 | 13-31 | 126-310 | |||
| F1 | 105 | 85 | 8-25 | 109-230 | |||
| F2 | 89 | 70 | 6-16 | 82-230 | |||
| F3 | 64 | 50 | 3-16 | 40-230 | |||
| GYS 500 | C1 | 1600 | 269 | 215 | 25-64 | 280-650 | 280 |
| C2 | 241 | 190 | 22-51 | 258-450 | |||
| C3 | 209 | 170 | 16-38 | 180-410 | |||
| F1 | 133 | 105 | 10-25 | 162-355 | |||
| F2 | 89 | 70 | 6-19 | 136-330 | |||
| F3 | 70 | 55 | 5-13 | 90-300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Max.feeding Size（mm） | Processing capacity（t/h） |
| GYS 300 | C1 | 140 | 81-180 |
| C2 | 80 | 60-180 | |
| F1 | 60 | 36-145 | |
| F2 | 30 | 36-130 | |
| GYS 400 | C1 | 190 | 207-400 |
| C2 | 168 | 162-350 | |
| C3 | 110 | 126-310 | |
| F1 | 85 | 109-230 | |
| F2 | 70 | 82-230 | |
| F3 | 50 | 40-230 | |
| GYS 500 | C1 | 215 | 280-650 |
| C2 | 190 | 258-450 | |
| C3 | 170 | 180-410 | |
| F1 | 105 | 162-355 | |
| F2 | 70 | 136-330 | |
| F3 | 55 | 90-300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
